VKC/MSVKC Series Pumps

Vertical Pumps - VKC6


Applications

  • Circulation through filters & eductors
  • Bio-filtration & odor control
  • Fume scrubbers
  • Chemical sumps

Specifications

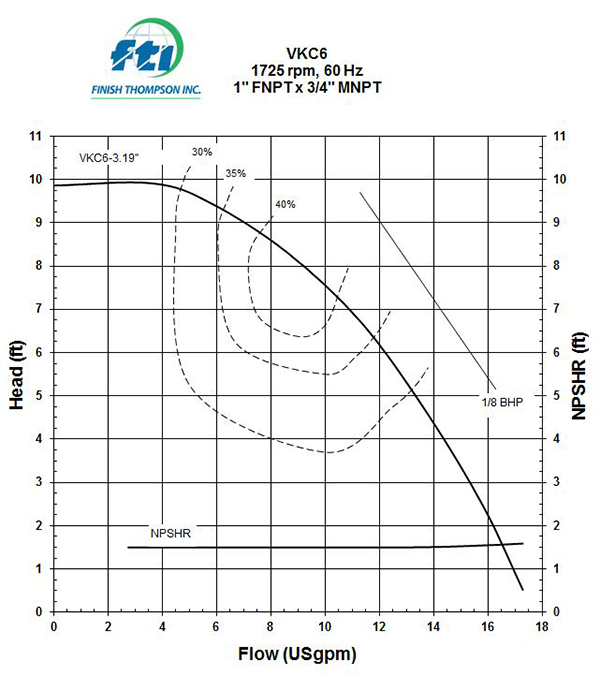

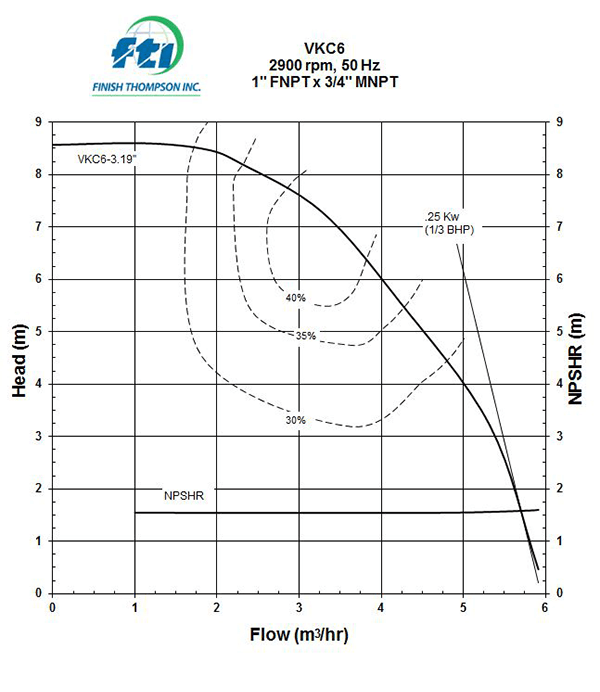

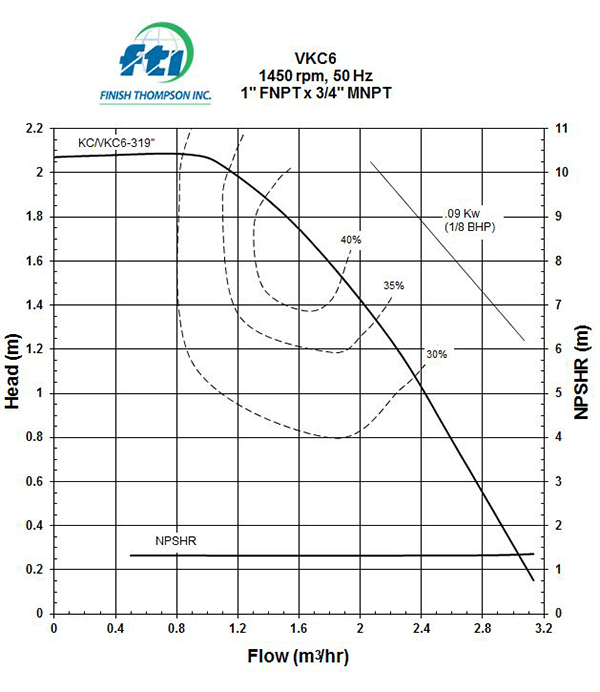

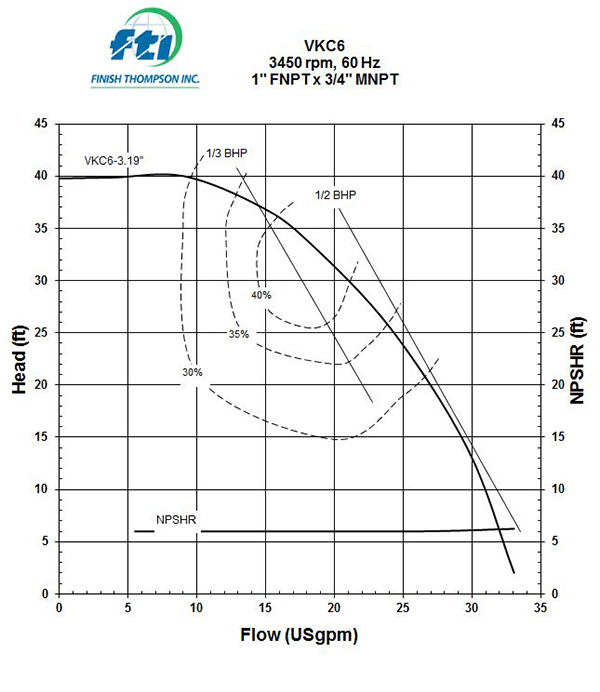

Performance

Exploded View

Downloads

Suction Port Size 1 in
Discharge Port Size 0.75 in
Connection Types NPT or BSP
Maximum Specific Gravity over 1.8
Maximum Working Pressure  60 psi (4.13 bar)
@3450 RPM @2900 RPM
Flow Range* 0.5 to 33 gpm 0.114 to 5.9 m3/h
Maximum Head 40 ft 8.5 m
Power Range** 0.33 to 0.5 hp 0.22 to 0.25 kW
*Based on 1.0 s.g.
Type Sealless Mag Drive
Configuration Vertical
Construction Materials Polypropylene or PVDF
O-Ring Materials FKM or EPDM
Bushing Materials Carbon, PTFE or Ceramic
Shaft Materials Ceramic
Column Lengths 12, 18, 24, 30, 36, 42, 48, 54, or 60 in
(30, 46, 61, 76, 91, 106, 122, 137, or 152 cm)
Polypropylene PVDF
Maximum Temperature: 140º F (60º C) 140º F (60º C)

Parts:

  • VKC Series without flywheel VKC5.5, 6, 6H, 7 8 12” – 48” (30 cm – 122 cm) 56C, 63, 71, 80 frame
  • 1. Motor
  • 2. Metric Motor Adapter
  • 3. Flat Washer
  • 4. Lock Washer
  • 5. Socket Head Cap Screw
  • 6. Flat Washer
  • 7. Lock Washer
  • 8. Motor Mounting Cap Screw
  • 9. Motor Adapter
  • 10. PVC Mounting Plate 9-1/2” x 14-3/4”
  • 11. Lock Ring
  • 12A. Motor Adapter/Column O-Ring
  • 12B. Motor Adapter/Column O-Ring
  • 13. Drive Shaft
  • 14. Drive Magnet Assembly
  • 15. Column Housing Adapter
  • 16. Impeller Housing O-ring
  • 17. Impeller Bushing
  • 18. Impeller Drive Assembly
  • 19. Impeller with Thrust Ring
  • 20. PTFE Thrust Ring
  • 21. Impeller Housing with Thrust Ring
  • 22. Impeller Housing Mounting Screw
  • 23. Discharge O-ring
  • 24. Hex Reducer Bushing
  • 25. Elbow
  • 26. Optional Discharge Piping
  • 27. Coupling
  • 28. Shaft Bearing
  • 29. Bearing Retaining Screw
  • 30. Column Extension
  • 31. Hex Nut
  • 32. Jam Nut
  • 33. Flat Washer
  • 34. Flywheel Adapter
  • 35. Flywheel
  • 36. Socket Head Bolt
  • 37. Lock Washer
  • 38A. Coupling Support
  • 38B. Coupling Support
  • 39. Lock Washer
  • 40. Bolt

Parts:

  • VKC Series with flywheel VKC8 (54” – 60” (137 cm – 152 cm) All VKC10 56C, 80 frame
  • 1. Motor
  • 2. Metric Motor Adapter
  • 3. Flat Washer
  • 4. Lock Washer
  • 5. Socket Head Cap Screw
  • 6. Flat Washer
  • 7. Lock Washer
  • 8. Motor Mounting Cap Screw
  • 9. Motor Adapter
  • 10. PVC Mounting Plate 9-1/2” x 14-3/4”
  • 11. Lock Ring
  • 12A. Motor Adapter/Column O-Ring
  • 12B. Motor Adapter/Column O-Ring
  • 13. Drive Shaft
  • 14. Drive Magnet Assembly
  • 15. Column Housing Adapter
  • 16. Impeller Housing O-ring
  • 17. Impeller Bushing
  • 18. Impeller Drive Assembly
  • 19. Impeller with Thrust Ring
  • 20. PTFE Thrust Ring
  • 21. Impeller Housing with Thrust Ring
  • 22. Impeller Housing Mounting Screw
  • 23. Discharge O-ring
  • 24. Hex Reducer Bushing
  • 25. Elbow
  • 26. Optional Discharge Piping
  • 27. Coupling
  • 28. Shaft Bearing
  • 29. Bearing Retaining Screw
  • 30. Column Extension
  • 31. Hex Nut
  • 32. Jam Nut
  • 33. Flat Washer
  • 34. Flywheel Adapter
  • 35. Flywheel
  • 36. Socket Head Bolt
  • 37. Lock Washer
  • 38A. Coupling Support
  • 38B. Coupling Support
  • 39. Lock Washer
  • 40. Bolt

Specifications


Suction Port Size 1 in
Discharge Port Size 0.75 in
Connection Types NPT or BSP
Maximum Specific Gravity over 1.8
Maximum Working Pressure  60 psi (4.13 bar)
@3450 RPM @2900 RPM
Flow Range* 0.5 to 33 gpm 0.114 to 5.9 m3/h
Maximum Head 40 ft 8.5 m
Power Range** 0.33 to 0.5 hp 0.22 to 0.25 kW
*Based on 1.0 s.g.
Type Sealless Mag Drive
Configuration Vertical
Construction Materials Polypropylene or PVDF
O-Ring Materials FKM or EPDM
Bushing Materials Carbon, PTFE or Ceramic
Shaft Materials Ceramic
Column Lengths 12, 18, 24, 30, 36, 42, 48, 54, or 60 in
(30, 46, 61, 76, 91, 106, 122, 137, or 152 cm)
Polypropylene PVDF
Maximum Temperature: 140º F (60º C) 140º F (60º C)

Performance


Exploded View


Parts:

  • VKC Series without flywheel VKC5.5, 6, 6H, 7 8 12” – 48” (30 cm – 122 cm) 56C, 63, 71, 80 frame
  • 1. Motor
  • 2. Metric Motor Adapter
  • 3. Flat Washer
  • 4. Lock Washer
  • 5. Socket Head Cap Screw
  • 6. Flat Washer
  • 7. Lock Washer
  • 8. Motor Mounting Cap Screw
  • 9. Motor Adapter
  • 10. PVC Mounting Plate 9-1/2” x 14-3/4”
  • 11. Lock Ring
  • 12A. Motor Adapter/Column O-Ring
  • 12B. Motor Adapter/Column O-Ring
  • 13. Drive Shaft
  • 14. Drive Magnet Assembly
  • 15. Column Housing Adapter
  • 16. Impeller Housing O-ring
  • 17. Impeller Bushing
  • 18. Impeller Drive Assembly
  • 19. Impeller with Thrust Ring
  • 20. PTFE Thrust Ring
  • 21. Impeller Housing with Thrust Ring
  • 22. Impeller Housing Mounting Screw
  • 23. Discharge O-ring
  • 24. Hex Reducer Bushing
  • 25. Elbow
  • 26. Optional Discharge Piping
  • 27. Coupling
  • 28. Shaft Bearing
  • 29. Bearing Retaining Screw
  • 30. Column Extension
  • 31. Hex Nut
  • 32. Jam Nut
  • 33. Flat Washer
  • 34. Flywheel Adapter
  • 35. Flywheel
  • 36. Socket Head Bolt
  • 37. Lock Washer
  • 38A. Coupling Support
  • 38B. Coupling Support
  • 39. Lock Washer
  • 40. Bolt

Parts:

  • VKC Series with flywheel VKC8 (54” – 60” (137 cm – 152 cm) All VKC10 56C, 80 frame
  • 1. Motor
  • 2. Metric Motor Adapter
  • 3. Flat Washer
  • 4. Lock Washer
  • 5. Socket Head Cap Screw
  • 6. Flat Washer
  • 7. Lock Washer
  • 8. Motor Mounting Cap Screw
  • 9. Motor Adapter
  • 10. PVC Mounting Plate 9-1/2” x 14-3/4”
  • 11. Lock Ring
  • 12A. Motor Adapter/Column O-Ring
  • 12B. Motor Adapter/Column O-Ring
  • 13. Drive Shaft
  • 14. Drive Magnet Assembly
  • 15. Column Housing Adapter
  • 16. Impeller Housing O-ring
  • 17. Impeller Bushing
  • 18. Impeller Drive Assembly
  • 19. Impeller with Thrust Ring
  • 20. PTFE Thrust Ring
  • 21. Impeller Housing with Thrust Ring
  • 22. Impeller Housing Mounting Screw
  • 23. Discharge O-ring
  • 24. Hex Reducer Bushing
  • 25. Elbow
  • 26. Optional Discharge Piping
  • 27. Coupling
  • 28. Shaft Bearing
  • 29. Bearing Retaining Screw
  • 30. Column Extension
  • 31. Hex Nut
  • 32. Jam Nut
  • 33. Flat Washer
  • 34. Flywheel Adapter
  • 35. Flywheel
  • 36. Socket Head Bolt
  • 37. Lock Washer
  • 38A. Coupling Support
  • 38B. Coupling Support
  • 39. Lock Washer
  • 40. Bolt
