UCR SERIES

ANSI Sealless Pumps - UCR6410

Applications

  • Fume scrubbers
  • Metals manufacturing
  • Electronics
  • Pharmaceuticals
  • Biodiesel

Specifications

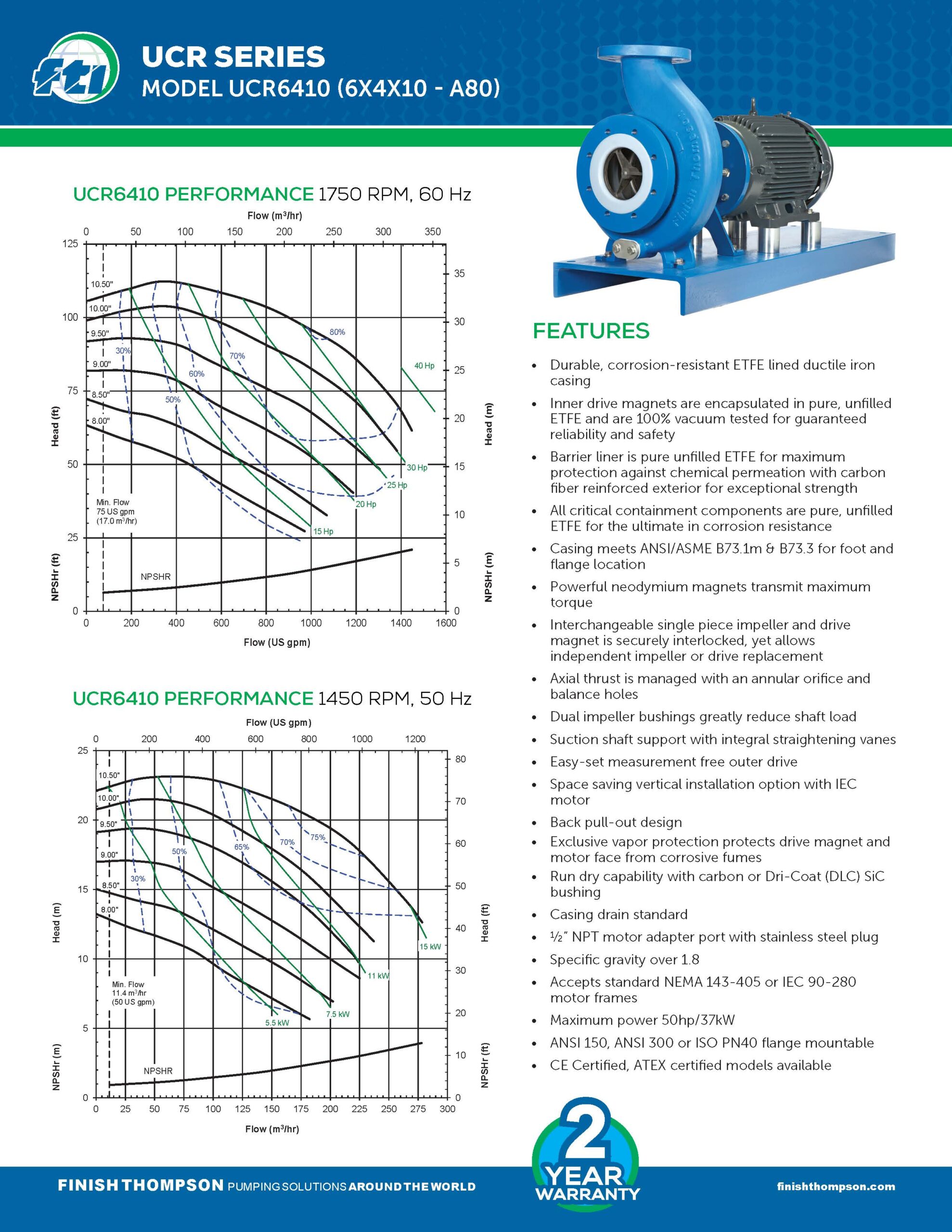

Performance

Exploded View

Video

Downloads

Suction Port Size 6 in
Discharge Port Size 4 in
Connection Types ANSI 150# Flange, ANSI 300# Flange, or ISO PN40 Flange
Maximum Specific Gravity over 1.8
Maximum Working Pressure 300 psi (21 bar)
Maximum Temperature 250º F (121º C)
@1750 RPM @1450 RPM
Flow Range* 75 to 1450 gpm 11.4 to 329 m3/h
Maximum Head 112 ft 34 m
Power Range** 7.9 to 34.7 hp 3.5 to 15 kW
*See Performance tab for individual impeller diameter capability
**Smallest to largest impeller on 1.0 s.g.
Type Heavy Duty Sealless Mag Drive
Configuration Horizontal ANSI dimensional A80
Construction Materials ETFE-lined ductile iron
O-Ring Materials FKM, EPDM, FEP/FKM, Simriz®, or Kalrez®
Bushing Materials Carbon, SiC, or DLC Dri-Coat SiC
Shaft Materials SiC or DLC Dri-Coat SiC
Kalrez® is a registered trademark of DuPont Performance Elastomers
Simriz® Perfluoroelastomer is a registered trademark of the Simrit® division of Freudenberg-NOK

Parts:

  • 1. Casing
  • 2. Front Shaft Support
  • 2A. Front Thrust Ring
  • 2B. O-Ring
  • 3. Impeller Assembly
  • 3A. Impeller Thrust Ring
  • 4. Impeller Drive
  • 4A. Bushings
  • 4Ai. Bushing Retainer
  • 4C. Rear Sealing Ring
  • 4D. Retainer & Locking Ring
  • 5. Shaft
  • 6. Barrier Assembly
  • 6A. Mid Sealing Ring
  • 6B. Mid Sealing Ring Retainer
  • 7. Clamp Ring
  • 8A. Outer Drive Magnet Hub
  • 8B. Shaft Adapter
  • 9. Motor Adapter
  • 9A. Motor Adapter Flange
  • 9B. Vapor Protection O-Ring
  • 11. Drain Cap
  • 11A. Drain Cap Gasket
  • 11B. Drain Cap Bolts
  • 11C. Drain Cap Lock Washer
  • 12. Barrier O-Ring
  • 13. Casing Cap Screw
  • 13A. Casing Lock Washers
  • 14. Jack Bolt
  • 15. Motor Adapter Bolts
  • 15A. Motor Adapter Lock Washers
  • 16. Motor Bolts
  • 16A. Motor Lock Washers
  • 17. Retaining Ring
  • 18. Shaft Adapter Washer
  • 19. Shaft Adapter Lock Washer
  • 20. Shaft Adapter Bolt
  • 21. Drive Nut
  • 22. Drive Lock Washers
  • 23. Drive Bolt
  • 24. Vapor Protection O-Ring
  • 25. Vapor Protection O-Ring
  • 27. Set Screw
  • 28. Foot
  • 29. Foot Bolt
  • 29A. Foot Lock Washer
  • 30. Motor Adapter Drain Plug
  • 31. Thermowell
  • 32. Motor Adapter Pump End Vapor Protection O-Ring

Specifications

Suction Port Size 6 in
Discharge Port Size 4 in
Connection Types ANSI 150# Flange, ANSI 300# Flange, or ISO PN40 Flange
Maximum Specific Gravity over 1.8
Maximum Working Pressure 300 psi (21 bar)
Maximum Temperature 250º F (121º C)
@1750 RPM @1450 RPM
Flow Range* 75 to 1450 gpm 11.4 to 329 m3/h
Maximum Head 112 ft 34 m
Power Range** 7.9 to 34.7 hp 3.5 to 15 kW
*See Performance tab for individual impeller diameter capability
**Smallest to largest impeller on 1.0 s.g.
Type Heavy Duty Sealless Mag Drive
Configuration Horizontal ANSI dimensional A80
Construction Materials ETFE-lined ductile iron
O-Ring Materials FKM, EPDM, FEP/FKM, Simriz®, or Kalrez®
Bushing Materials Carbon, SiC, or DLC Dri-Coat SiC
Shaft Materials SiC or DLC Dri-Coat SiC
Kalrez® is a registered trademark of DuPont Performance Elastomers
Simriz® Perfluoroelastomer is a registered trademark of the Simrit® division of Freudenberg-NOK

Performance

Exploded View

Parts:

  • 1. Casing
  • 2. Front Shaft Support
  • 2A. Front Thrust Ring
  • 2B. O-Ring
  • 3. Impeller Assembly
  • 3A. Impeller Thrust Ring
  • 4. Impeller Drive
  • 4A. Bushings
  • 4Ai. Bushing Retainer
  • 4C. Rear Sealing Ring
  • 4D. Retainer & Locking Ring
  • 5. Shaft
  • 6. Barrier Assembly
  • 6A. Mid Sealing Ring
  • 6B. Mid Sealing Ring Retainer
  • 7. Clamp Ring
  • 8A. Outer Drive Magnet Hub
  • 8B. Shaft Adapter
  • 9. Motor Adapter
  • 9A. Motor Adapter Flange
  • 9B. Vapor Protection O-Ring
  • 11. Drain Cap
  • 11A. Drain Cap Gasket
  • 11B. Drain Cap Bolts
  • 11C. Drain Cap Lock Washer
  • 12. Barrier O-Ring
  • 13. Casing Cap Screw
  • 13A. Casing Lock Washers
  • 14. Jack Bolt
  • 15. Motor Adapter Bolts
  • 15A. Motor Adapter Lock Washers
  • 16. Motor Bolts
  • 16A. Motor Lock Washers
  • 17. Retaining Ring
  • 18. Shaft Adapter Washer
  • 19. Shaft Adapter Lock Washer
  • 20. Shaft Adapter Bolt
  • 21. Drive Nut
  • 22. Drive Lock Washers
  • 23. Drive Bolt
  • 24. Vapor Protection O-Ring
  • 25. Vapor Protection O-Ring
  • 27. Set Screw
  • 28. Foot
  • 29. Foot Bolt
  • 29A. Foot Lock Washer
  • 30. Motor Adapter Drain Plug
  • 31. Thermowell
  • 32. Motor Adapter Pump End Vapor Protection O-Ring

Video

Downloads
