EF Series Drum/Barrel Pumps

Drum/Barrel Pumps - EFV Drum Pumps

The EF Series pumps provide an economical choice for light duty transfer. An ideal replacement for hand pumps.

Features include:

  • Polypropylene, pure polypropylene/PVDF, or 316 stainless steel tubes
  • Dual speed adjustable motors
  • Tubes interchangeable with motors
  • Lightweight & economical
  • Integral strainer
  • Plastic models have built-in hose cord & clips

Pat. US D658,273 S; Pat. US D657,849 S; Pat. ZL 201130042121.X; Pat. ZL 201130042107.X; OHIM Pat. 001839002-0002; OHIM Pat.001839002-0001


Applications

  • Light acids and bases
  • Solvents
  • Sodium hypochlorite
  • Cleaners
  • Coolants
  • DEF/AdBlue (diesel exhaust fluid)

Specifications

Motors

Video

Downloads

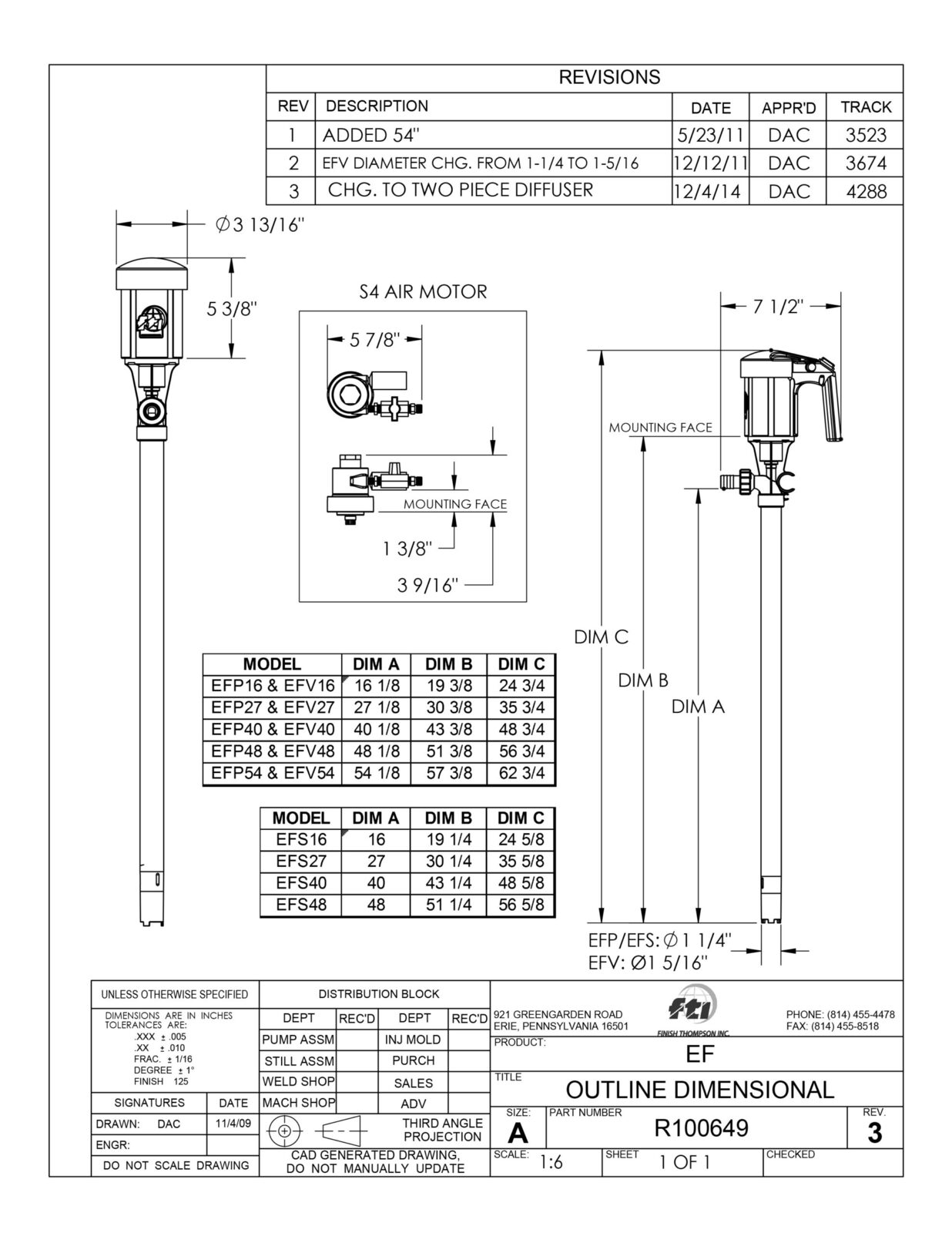

Available Lengths 16, 27, 40, 48, 54 in (41, 69, 102, 122, 137 cm)
Tube Diameter 1.32 in
Discharge Size 3/4 in (1.91 cm)
Discharge Types Hose barb
Hose Type 3/4 in (1.91 cm)
Electric Motor Air Motor 12V Motor
Maximum Flow 17 gpm (64 lpm) 15 gpm (57 lpm) 14 gpm (53 lpm)
Maximum Head 20 ft (6.1 m) 17 ft (5.2 m) 13 ft (4 m)
Maximum Specific Gravity 1.6 1.6 1.6
Maximum Viscosity 300 cP 300 cP 100 cP
Tube Material Pure PP/Pure PVDF
Shaft Material Alloy 625
O-ring Material FKM
Impeller Material ETFE
Maximum Temperature 160º F (71º C)
Minimum Temperature 0º F (-18º C)

S1, S2, S3

S6

S4

ODP (Open Drip Proof), Splashproof, IP24 Electric & Battery Motors

Model Certifications Requirements Input/Output
(W)
RPM Maximum Viscosity
S1 QPS 115V/60Hz 230/110 8,000-14,000 300 cP
S2 CE 230V/50-60Hz 230/110 8,000-14,000 300 cP
S3 CE 115V/50-60Hz 230/110 8,000-14,000 300 cP
S6 CE 12V 150/100 8,000-12,000 300 cP

Air Motors*

Model Certifications Requirements Input/Output
(W)
RPM Maximum Viscosity
S4† CE 40@27 cfm -/370 300-11,000 300 cP

* An air motor is a non-electrical device meaning possibility of explosion from igniting flammables is reduced.
† ATEX certified option available. Contact factory for more information.

Specifications


Available Lengths 16, 27, 40, 48, 54 in (41, 69, 102, 122, 137 cm)
Tube Diameter 1.32 in
Discharge Size 3/4 in (1.91 cm)
Discharge Types Hose barb
Hose Type 3/4 in (1.91 cm)
Electric Motor Air Motor 12V Motor
Maximum Flow 17 gpm (64 lpm) 15 gpm (57 lpm) 14 gpm (53 lpm)
Maximum Head 20 ft (6.1 m) 17 ft (5.2 m) 13 ft (4 m)
Maximum Specific Gravity 1.6 1.6 1.6
Maximum Viscosity 300 cP 300 cP 100 cP
Tube Material Pure PP/Pure PVDF
Shaft Material Alloy 625
O-ring Material FKM
Impeller Material ETFE
Maximum Temperature 160º F (71º C)
Minimum Temperature 0º F (-18º C)

Motors


S1, S2, S3

S6

S4

ODP (Open Drip Proof), Splashproof, IP24 Electric & Battery Motors

Model Certifications Requirements Input/Output
(W)
RPM Maximum Viscosity
S1 QPS 115V/60Hz 230/110 8,000-14,000 300 cP
S2 CE 230V/50-60Hz 230/110 8,000-14,000 300 cP
S3 CE 115V/50-60Hz 230/110 8,000-14,000 300 cP
S6 CE 12V 150/100 8,000-12,000 300 cP

Air Motors*

Model Certifications Requirements Input/Output
(W)
RPM Maximum Viscosity
S4† CE 40@27 cfm -/370 300-11,000 300 cP

* An air motor is a non-electrical device meaning possibility of explosion from igniting flammables is reduced.
† ATEX certified option available. Contact factory for more information.

Video


Downloads
