DB Series

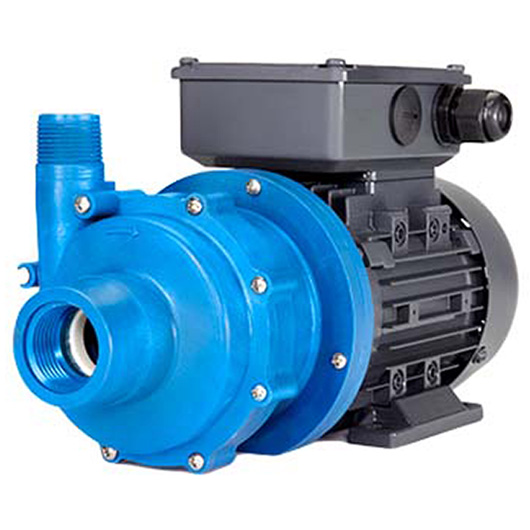

Sealless Plastic Pumps - DB5.5

Flooded Suction


Applications

  • Aquarium/Zoo
  • Chemical Processing
  • Electronics
  • Plating

Specifications

Performance

Exploded View

Video

Downloads

Suction Port Size 1 in
Discharge Port Size 0.75 in
Connection Types NPT, BSP
Maximum Specific Gravity over 1.8
Maximum Working Pressure  60 psi (4.1 bar)
 Impeller Diameter  3 in (7.6 cm)
@3450 RPM @2900 RPM
Flow Range  0.25 to 30 gpm  0.56 to 5.7 m3/h
Maximum Head 31 ft 6.6 m
Power Range* 0.09 to 0.27 hp 0.07 to 0.20 kW
*Based on 1.0 specific gravity
Type Sealless Mag Drive
Configuration Horizontal
Construction Materials Polypropylene or PVDF
O-Ring Materials FKM, EPDM, Simriz® or Kalrez®
Bushing Materials Carbon, PTFE or Alumina Ceramic
Polypropylene PVDF
Maximum Temperature: 180º F (82º C) 220º F (104º C)

Parts:

  • 1. Impeller Housing with Thrust Ring and Housing Screws
  • 2. Housing O-ring
  • 3. Impeller Assembly with Thrust Ring & Bushing
  • 3A. Impeller Thrust Ring
  • 3B. Impeller Bushing
  • 4. Motor Adapter/Barrier
  • 5. Outer Drive Magnet Assembly w/Retaining Ring
  • 5A. Retaining Ring
  • 5B. Set Screw
  • 6. Motor Adapter Flange
  • 7. Housing Screw
  • 7A. Housing Discharge Screw
  • 8. Motor Adapter Barrier Screw
  • 9. Drive Bolt
  • 10. Drive Lock Washer
  • 11. Drive Flat Washer
  • 12. Motor Adapter Flange Bolt

Specifications


Suction Port Size 1 in
Discharge Port Size 0.75 in
Connection Types NPT, BSP
Maximum Specific Gravity over 1.8
Maximum Working Pressure  60 psi (4.1 bar)
 Impeller Diameter  3 in (7.6 cm)
@3450 RPM @2900 RPM
Flow Range  0.25 to 30 gpm  0.56 to 5.7 m3/h
Maximum Head 31 ft 6.6 m
Power Range* 0.09 to 0.27 hp 0.07 to 0.20 kW
*Based on 1.0 specific gravity
Type Sealless Mag Drive
Configuration Horizontal
Construction Materials Polypropylene or PVDF
O-Ring Materials FKM, EPDM, Simriz® or Kalrez®
Bushing Materials Carbon, PTFE or Alumina Ceramic
Polypropylene PVDF
Maximum Temperature: 180º F (82º C) 220º F (104º C)

Performance


Exploded View


Parts:

  • 1. Impeller Housing with Thrust Ring and Housing Screws
  • 2. Housing O-ring
  • 3. Impeller Assembly with Thrust Ring & Bushing
  • 3A. Impeller Thrust Ring
  • 3B. Impeller Bushing
  • 4. Motor Adapter/Barrier
  • 5. Outer Drive Magnet Assembly w/Retaining Ring
  • 5A. Retaining Ring
  • 5B. Set Screw
  • 6. Motor Adapter Flange
  • 7. Housing Screw
  • 7A. Housing Discharge Screw
  • 8. Motor Adapter Barrier Screw
  • 9. Drive Bolt
  • 10. Drive Lock Washer
  • 11. Drive Flat Washer
  • 12. Motor Adapter Flange Bolt

Video


Downloads
