AP Series | AV Model Pumps

Vertical Pumps - AV8H

Applications

  • Chemical processing
  • Plating, photo processing
  • Printed circuit boards
  • Pharmaceutical
  • Waste water treatment

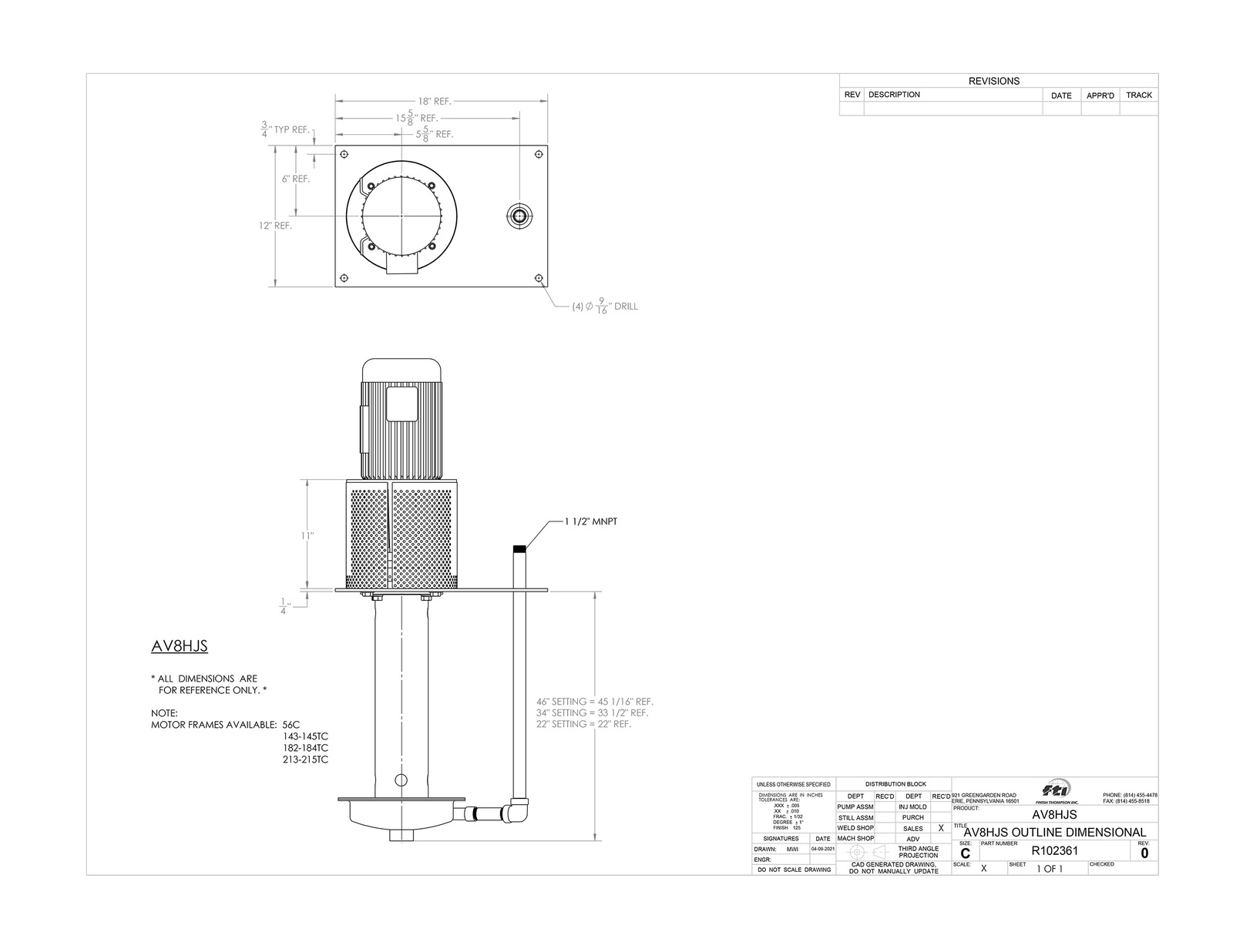

Specifications

Performance

Exploded View

Downloads

Suction Port Size 1.25 in
Discharge Port Size 0.75 in
Connection Types NPT
Maximum Specific Gravity up to 1.8
Maximum Working Pressure  120 psi (8.3 bar)
Maximum Temperature 300º F (149º C)
@3450 RPM @2900 RPM
Flow Range* 5 to 106 gpm 4.54 to 19.1 m3/h
Maximum Head 263 ft 58.9 m
Power Range** 4.3 to 10.7 hp 1.8 to 5 kW
*See Performance tab for individual impeller diameter capability
**Smallest to largest impeller on 1.0 s.g.
Type Stainless Steel High Head
Configuration Vertical
Construction Materials 316 Stainless Steel
O-Ring Materials FKM, EPDM, or PTFE Encapsulated Silicone
Lower Bushing Materials  Carbon, FKM/SS, or EPDM/SS
Column Lengths 24 in (61 cm), 36 in (91 cm), or 48 in (122 cm)

Parts:

  • 1. Motor Adapter
  • 2. Motor Mount
  • 3. Coupling Guard
  • 4. Flat Washer
  • 5. Lock Washer
  • 6. Hex Head Bolt
  • 7. Machine Screw
  • 8. Flat Washer
  • 9. Coupling L-100
  • 9A. Coupling Insert
  • 10. Top Bearing
  • 11. Lip Seal
  • 12. Lower Bearing Mount
  • 13. Hex Head Bolt
  • 14. Lock Washer
  • 15. Hex Head Bolt
  • 16. Flat Washer
  • 17. Mounting Plate
  • 18. Flat Washer
  • 19. Hex Head Bolt
  • 20. Lock Washer
  • 21. Hex Head Bolt
  • 22. Column Assembly
  • 23. Shaft
  • 24. Lower Bushing
  • 25. Housing O-Ring
  • 26. Impeller
  • 27. Hex Head Cap Screw
  • 28. Impeller Housing
  • 30. Pipe Nipple
  • 31. Street Elbow
  • 32. Discharge Tube
  • 33. Hex Head Nut
  • 34. Cap Screw Hex Head
  • 35. Shaft Key

Specifications

Suction Port Size 1.25 in
Discharge Port Size 0.75 in
Connection Types NPT
Maximum Specific Gravity up to 1.8
Maximum Working Pressure  120 psi (8.3 bar)
Maximum Temperature 300º F (149º C)
@3450 RPM @2900 RPM
Flow Range* 5 to 106 gpm 4.54 to 19.1 m3/h
Maximum Head 263 ft 58.9 m
Power Range** 4.3 to 10.7 hp 1.8 to 5 kW
*See Performance tab for individual impeller diameter capability
**Smallest to largest impeller on 1.0 s.g.
Type Stainless Steel High Head
Configuration Vertical
Construction Materials 316 Stainless Steel
O-Ring Materials FKM, EPDM, or PTFE Encapsulated Silicone
Lower Bushing Materials  Carbon, FKM/SS, or EPDM/SS
Column Lengths 24 in (61 cm), 36 in (91 cm), or 48 in (122 cm)

Performance

Exploded View

Parts:

  • 1. Motor Adapter
  • 2. Motor Mount
  • 3. Coupling Guard
  • 4. Flat Washer
  • 5. Lock Washer
  • 6. Hex Head Bolt
  • 7. Machine Screw
  • 8. Flat Washer
  • 9. Coupling L-100
  • 9A. Coupling Insert
  • 10. Top Bearing
  • 11. Lip Seal
  • 12. Lower Bearing Mount
  • 13. Hex Head Bolt
  • 14. Lock Washer
  • 15. Hex Head Bolt
  • 16. Flat Washer
  • 17. Mounting Plate
  • 18. Flat Washer
  • 19. Hex Head Bolt
  • 20. Lock Washer
  • 21. Hex Head Bolt
  • 22. Column Assembly
  • 23. Shaft
  • 24. Lower Bushing
  • 25. Housing O-Ring
  • 26. Impeller
  • 27. Hex Head Cap Screw
  • 28. Impeller Housing
  • 30. Pipe Nipple
  • 31. Street Elbow
  • 32. Discharge Tube
  • 33. Hex Head Nut
  • 34. Cap Screw Hex Head
  • 35. Shaft Key
