AV Series Pumps

Vertical Pumps - AV6


Applications

  • Chemical processing
  • Plating, photo processing
  • Printed circuit boards

Specifications

Performance

Exploded View

Downloads

Suction Port Size 2 in
Discharge Port Size 1.5 in
Connection Types NPT
Maximum Specific Gravity up to 1.8
Maximum Working Pressure 100 psi (6.9 bar)
Maximum Temperature 300º F (149º C)
@3450 RPM @2900 RPM
Flow Range* 10 to 216 gpm 2.27 to 39.5 m3/h
Maximum Head 136.6 ft 29.4 m
Power Range** 2.8 to 6.9 hp 1.2 to 3.1 kW
*See Performance tab for individual impeller diameter capability
**Smallest to largest impeller on 1.0 s.g.
Type Stainless Steel
Configuration Vertical
Construction Materials 316 Stainless Steel
O-Ring Materials FKM, EPDM, or PTFE Encapsulated Silicone
Lower Bushing Materials Carbon, FKM/SS, or EPDM/SS
Column Lengths 24 in (61 cm), 36 in (91 cm), or 48 in (122 cm)

Parts:

  • 1. Motor Adapter
  • 2. Motor Mount
  • 3. Coupling Guard
  • 4. Flat Washer
  • 5. Lock Washer
  • 6. Hex Head Bolt
  • 7. Machine Screw
  • 8. Flat Washer
  • 9. Coupling L-100
  • 9A. Coupling Insert
  • 10. Top Bearing
  • 11. Lip Seal
  • 12. Lower Bearing Mount
  • 13. Hex Head Bolt
  • 14. Lock Washer
  • 15. Hex Head Cap Screw
  • 16. Flat washer
  • 17. Mounting Plate
  • 18. Flat Washer
  • 19. Hex Head Bolt
  • 20. Lock Washer
  • 21. Hex Head Bolt
  • 22. Column Assembly
  • 23. Shaft
  • 24. Lower Bushing
  • 25. Housing O-Ring
  • 26. Impeller
  • 27. Hex Head Cap Screw
  • 28. Impeller Housing
  • 29. V Clamp
  • 30. Pipe Nipple
  • 31. Street Elbow
  • 32. Discharge Pipe
  • 35. Shaft Key

Specifications


Suction Port Size 2 in
Discharge Port Size 1.5 in
Connection Types NPT
Maximum Specific Gravity up to 1.8
Maximum Working Pressure 100 psi (6.9 bar)
Maximum Temperature 300º F (149º C)
@3450 RPM @2900 RPM
Flow Range* 10 to 216 gpm 2.27 to 39.5 m3/h
Maximum Head 136.6 ft 29.4 m
Power Range** 2.8 to 6.9 hp 1.2 to 3.1 kW
*See Performance tab for individual impeller diameter capability
**Smallest to largest impeller on 1.0 s.g.
Type Stainless Steel
Configuration Vertical
Construction Materials 316 Stainless Steel
O-Ring Materials FKM, EPDM, or PTFE Encapsulated Silicone
Lower Bushing Materials Carbon, FKM/SS, or EPDM/SS
Column Lengths 24 in (61 cm), 36 in (91 cm), or 48 in (122 cm)

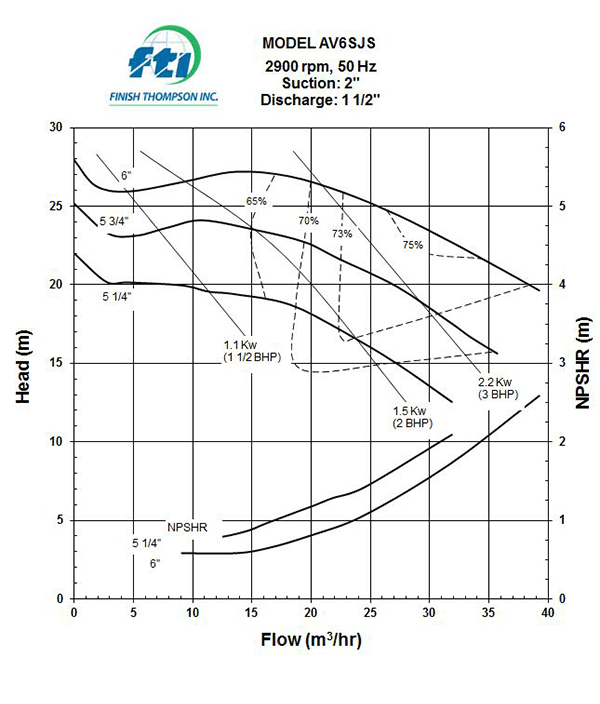

Performance


Exploded View


Parts:

  • 1. Motor Adapter
  • 2. Motor Mount
  • 3. Coupling Guard
  • 4. Flat Washer
  • 5. Lock Washer
  • 6. Hex Head Bolt
  • 7. Machine Screw
  • 8. Flat Washer
  • 9. Coupling L-100
  • 9A. Coupling Insert
  • 10. Top Bearing
  • 11. Lip Seal
  • 12. Lower Bearing Mount
  • 13. Hex Head Bolt
  • 14. Lock Washer
  • 15. Hex Head Cap Screw
  • 16. Flat washer
  • 17. Mounting Plate
  • 18. Flat Washer
  • 19. Hex Head Bolt
  • 20. Lock Washer
  • 21. Hex Head Bolt
  • 22. Column Assembly
  • 23. Shaft
  • 24. Lower Bushing
  • 25. Housing O-Ring
  • 26. Impeller
  • 27. Hex Head Cap Screw
  • 28. Impeller Housing
  • 29. V Clamp
  • 30. Pipe Nipple
  • 31. Street Elbow
  • 32. Discharge Pipe
  • 35. Shaft Key
