AP Series | AV Model Pumps
Vertical Pumps - AV5H
Applications
- Chemical processing
- Caustic
- Waste water treatment
Specifications
Performance
Exploded View
Downloads
| Suction Port Size | 0.5 in |
|---|---|
| Discharge Port Size | 0.25 in |
| Connection Types | NPT |
| Maximum Specific Gravity | up to 1.8 |
| Maximum Working Pressure | 100 psi (6.9 bar) |
| Maximum Temperature | 300º F (149º C) |
| @3450 RPM | @2900 RPM | |
|---|---|---|
| Flow Range* | 2 to 16.9 gpm | 0.45 to 3.1 m3/h |
| Maximum Head | 96 ft | 19 m |
| Power Range** | 0.41 to 0.57 hp | 0.18 to 0.26 kW |
| *See Performance tab for individual impeller diameter capability **Smallest to largest impeller on 1.0 s.g. |
||
| Type | Stainless Steel High Head |
|---|---|
| Configuration | Vertical |
| Construction Materials | 316 Stainless Steel |
| O-Ring Materials | FKM, EPDM, or PTFE Encapsulated Silicone |
| Lower Bushing Materials | Carbon, FKM/SS, or EPDM/SS |
| Column Lengths | 12 in (30 cm), 24 in (61 cm), or 36 in (91.4 cm) |
Parts:
- 1. Mounting Plate
- 2. Slinger Ring
- 3. Flat Washer
- 4. Lock Washer
- 5. Bolt
- 6. Set Screw
- 7. Column Assembly
- 8. Shaft
- 9. Lower Bushing
- 10. Housing O-Ring
- 11. V Clamp
- 12. Impeller
- 13. Flat Washer
- 14. Lock Washer
- 15. Bolt
- 16. Impeller Housing
- 17. Street Elbow
- 18. Discharge Tube
Additional downloads available upon request, please contact sales@finishthompson.com
Specifications
| Suction Port Size | 0.5 in |
|---|---|
| Discharge Port Size | 0.25 in |
| Connection Types | NPT |
| Maximum Specific Gravity | up to 1.8 |
| Maximum Working Pressure | 100 psi (6.9 bar) |
| Maximum Temperature | 300º F (149º C) |
| @3450 RPM | @2900 RPM | |
|---|---|---|
| Flow Range* | 2 to 16.9 gpm | 0.45 to 3.1 m3/h |
| Maximum Head | 96 ft | 19 m |
| Power Range** | 0.41 to 0.57 hp | 0.18 to 0.26 kW |
| *See Performance tab for individual impeller diameter capability **Smallest to largest impeller on 1.0 s.g. |
||
| Type | Stainless Steel High Head |
|---|---|
| Configuration | Vertical |
| Construction Materials | 316 Stainless Steel |
| O-Ring Materials | FKM, EPDM, or PTFE Encapsulated Silicone |
| Lower Bushing Materials | Carbon, FKM/SS, or EPDM/SS |
| Column Lengths | 12 in (30 cm), 24 in (61 cm), or 36 in (91.4 cm) |

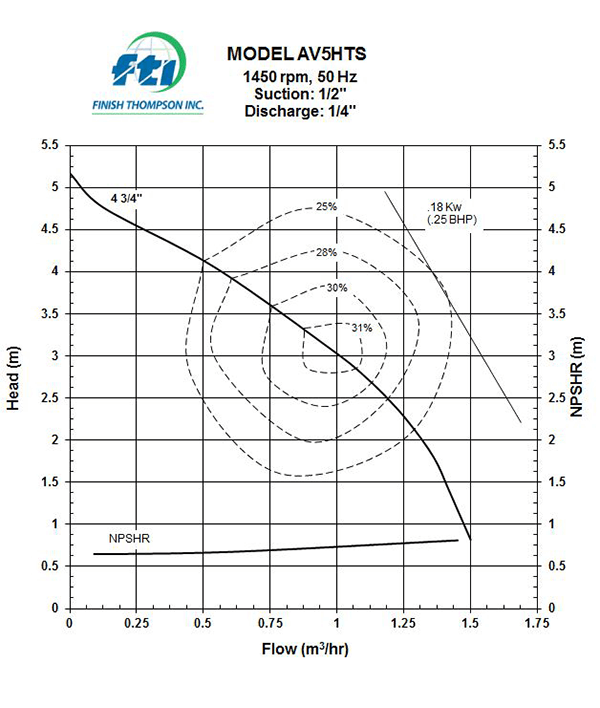

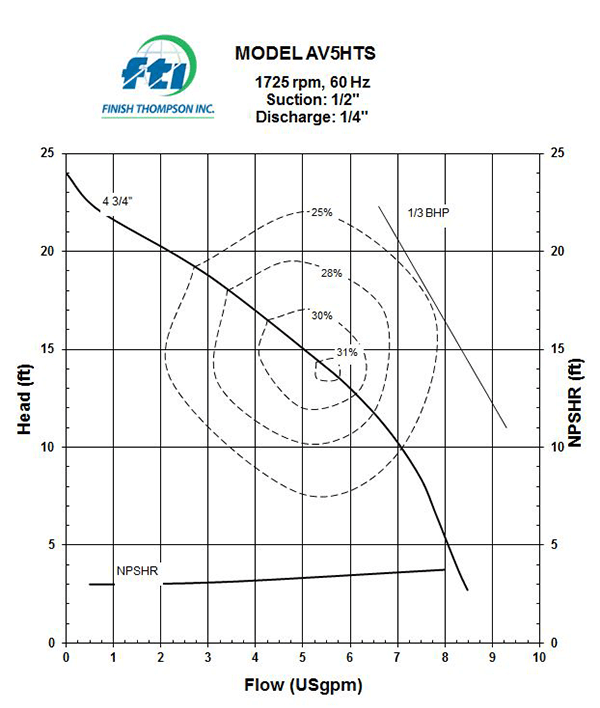

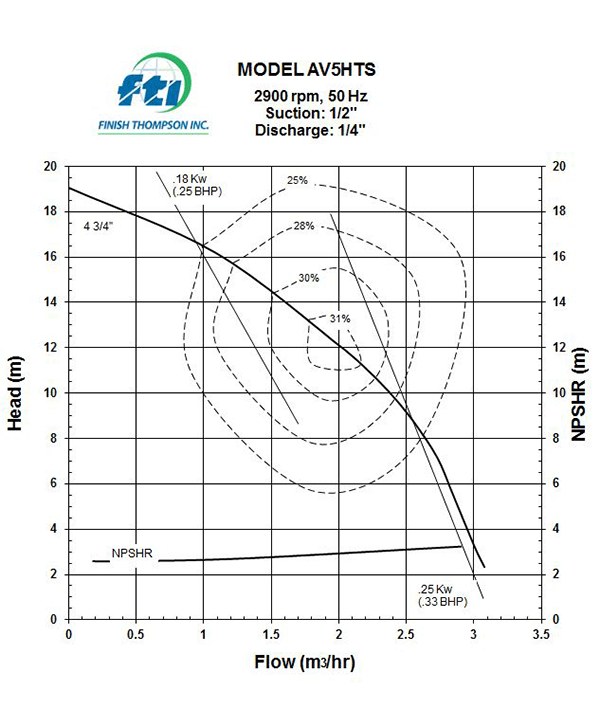

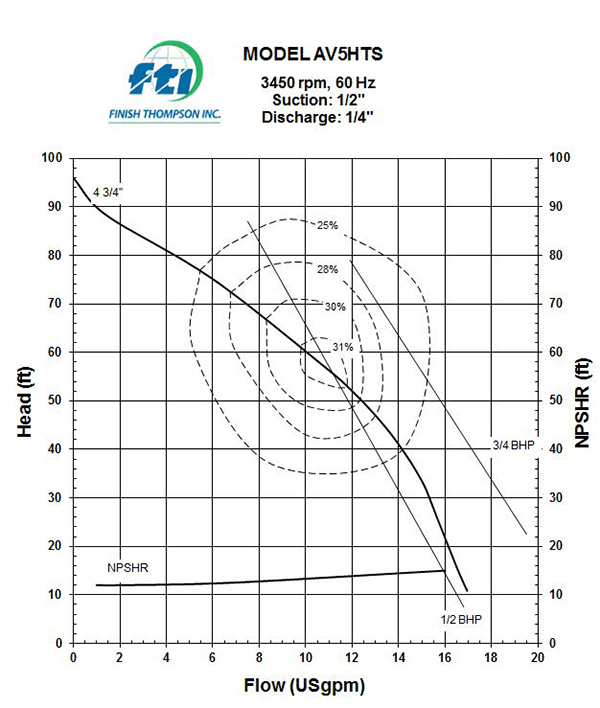

Performance
Exploded View
Parts:
- 1. Mounting Plate
- 2. Slinger Ring
- 3. Flat Washer
- 4. Lock Washer
- 5. Bolt
- 6. Set Screw
- 7. Column Assembly
- 8. Shaft
- 9. Lower Bushing
- 10. Housing O-Ring
- 11. V Clamp
- 12. Impeller
- 13. Flat Washer
- 14. Lock Washer
- 15. Bolt
- 16. Impeller Housing
- 17. Street Elbow
- 18. Discharge Tube
Downloads
Additional downloads available upon request, please contact sales@finishthompson.com
