AC Series Pumps

Sealed Pumps - AC6H


Applications

  • Chemical processing
  • Printed circuit boards
  • Pharmaceutical
  • Waste water treatment

Specifications

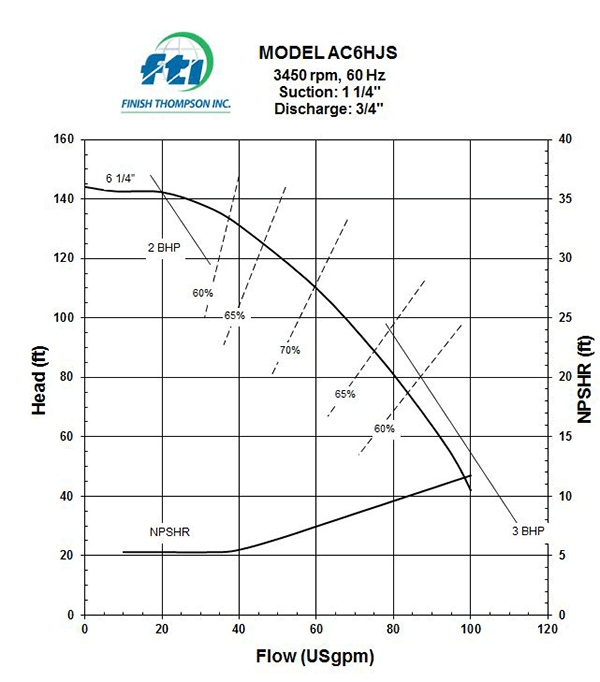

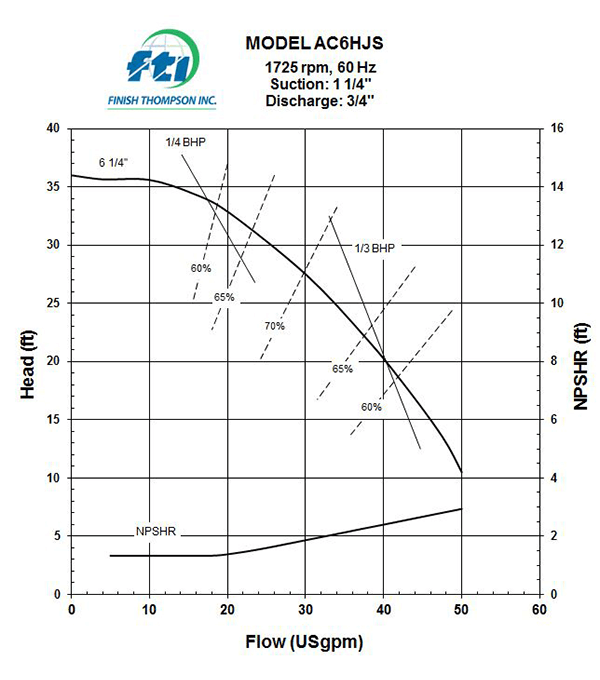

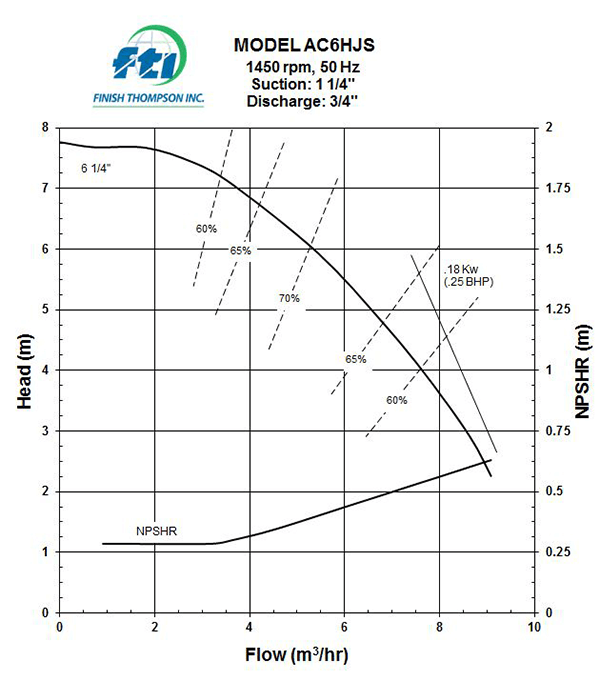

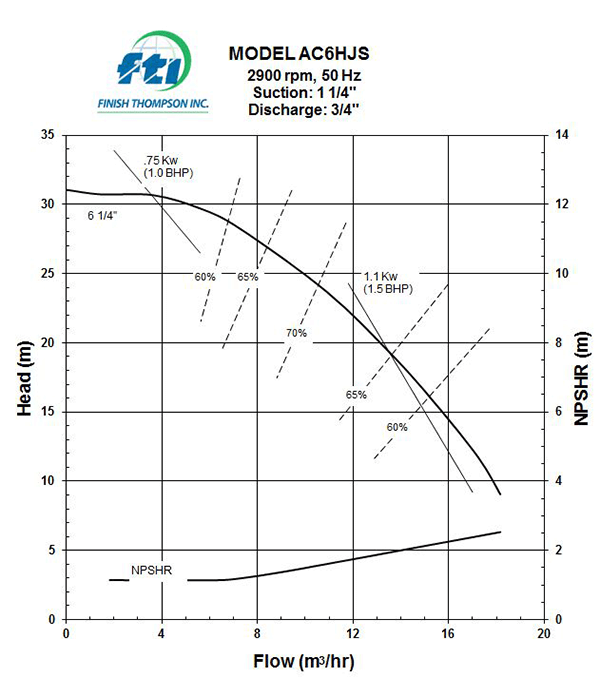

Performance

Exploded View

Downloads

Port Sizes
(Suction x Discharge) &

Connection Types
1-1/4 x 3/4 NPT
1-1/4 x 3/4 BSP
1-1/2 x 1 Tri-clamp
Maximum Specific Gravity up to 1.8
Maximum Working Pressure 100 psi (6.9 bar)
Maximum Temperature 300º F (149º C)
@3450 RPM @2900 RPM
Flow Range* 3 to 100 gpm 0.68 to 18.2 m3/h
Maximum Head 144.1 ft 31.1 m
Power Range** 2 to 2.8 hp 0.81 to 1.44 kW
*See Performance tab for individual impeller diameter capability
**Smallest to largest impeller on 1.0 s.g.
Type Stainless Steel Mechanically Sealed High Head
Configuration Horizontal
Construction Materials 316 Stainless Steel
O-Ring Materials FKM, EPDM, Buna, or PTFE Encapsulated Silicone
Seal Type Bellows Type 21
Seal Materials Carbon, Ceramic, SiC, FKM, EPDM, Buna, or Kalrez®
Kalrez® is a registered trademark of DuPont Performance Elastomers

Parts:

  • 1. Impeller Housing
  • 2. V Clamp
  • 3. Housing O-Ring
  • 4. Impeller 316 Stainless Stee
  • 5. Mechanical Seal
  • 6. Impeller Bolt
  • 7. Backhead
  • 8. Cast Iron Motor Adapter
  • 9. Cap Screw (4 req'd.)
  • 10. Lock Washer (4 req'd.)
  • 11. Flat Washer
  • 12. Cap Screw (4 req'd.)
  • 13. Lock Washer (4 req'd.)
  • 14. Mounting Plate

Specifications


Port Sizes
(Suction x Discharge) &

Connection Types
1-1/4 x 3/4 NPT
1-1/4 x 3/4 BSP
1-1/2 x 1 Tri-clamp
Maximum Specific Gravity up to 1.8
Maximum Working Pressure 100 psi (6.9 bar)
Maximum Temperature 300º F (149º C)
@3450 RPM @2900 RPM
Flow Range* 3 to 100 gpm 0.68 to 18.2 m3/h
Maximum Head 144.1 ft 31.1 m
Power Range** 2 to 2.8 hp 0.81 to 1.44 kW
*See Performance tab for individual impeller diameter capability
**Smallest to largest impeller on 1.0 s.g.
Type Stainless Steel Mechanically Sealed High Head
Configuration Horizontal
Construction Materials 316 Stainless Steel
O-Ring Materials FKM, EPDM, Buna, or PTFE Encapsulated Silicone
Seal Type Bellows Type 21
Seal Materials Carbon, Ceramic, SiC, FKM, EPDM, Buna, or Kalrez®
Kalrez® is a registered trademark of DuPont Performance Elastomers

Performance


Exploded View


Parts:

  • 1. Impeller Housing
  • 2. V Clamp
  • 3. Housing O-Ring
  • 4. Impeller 316 Stainless Stee
  • 5. Mechanical Seal
  • 6. Impeller Bolt
  • 7. Backhead
  • 8. Cast Iron Motor Adapter
  • 9. Cap Screw (4 req'd.)
  • 10. Lock Washer (4 req'd.)
  • 11. Flat Washer
  • 12. Cap Screw (4 req'd.)
  • 13. Lock Washer (4 req'd.)
  • 14. Mounting Plate
