AC Series Pumps

Sealed Pumps - AC5R


Applications

  • Chemical processing
  • Printed circuit boards
  • Pharmaceutical
  • Waste water treatment

Specifications

Performance

Exploded View

Downloads

Port Sizes
(Suction x Discharge) &

Connection Types
1.5 in x 1.25 in NPT or BSP
2 in x 1.5 in NPT or BSP
1.5 in x 1.5 in ANSI 150# Flanges
1.5 in x 1 in Electropolished Tri-clamps
2 in x 1.5 in ANSI 150# Flanges
2 in x 1.5 in Electroplished Tri-Clamps
Maximum Specific Gravity up to 1.8
Maximum Working Pressure 100 psi (6.9 bar)
Maximum Temperature 300º F (149º C)
@3450 RPM @2900 RPM
Flow Range* 5 to 142 gpm 1.14 to 26.2 m3/h
Maximum Head 88.2 ft 18.3  m
Power Range** 0.48 to 3.5 hp 0.18 to 1.4 kW
*See Performance tab for individual impeller diameter capability
**Smallest to largest impeller on 1.0 s.g.
Type Stainless Steel Mechanically Sealed Recessed
Configuration Horizontal
Construction Materials 316 Stainless Steel
O-Ring Materials FKM, EPDM, Buna, or PTFE Encapsulated Silicone
Seal Type Bellows Type 21, J103081
Seal Materials Carbon, Ceramic, SiC, FKM, EPDM, Buna, or Kalrez®
*Kalrez® is a registered trademark of DuPont Performance Elastomers

Parts:

  • 1. Impeller Housing
  • 2. V-Clamp
  • 3. O-Ring
  • 4. Impeller
  • 5. Seal
  • 6. Shaft Adapter w/ Set Screws
  • 7. Backhead
  • 8. Motor Adapter
  • 9. 1/4-20 x 1/4” Cup Point Set Screw
  • 10. Hex Head Cap Screw
  • 11. Lock Washer
  • 12. Slinger Ring
  • 13. Cap Screw Fillister Head (all)
  • 14. #10 Lock Washer (all)
  • 15. Mounting Plate
  • 16. Metric Motor Adapter
  • 17. Flat Washer - 5/16”

Specifications


Port Sizes
(Suction x Discharge) &

Connection Types
1.5 in x 1.25 in NPT or BSP
2 in x 1.5 in NPT or BSP
1.5 in x 1.5 in ANSI 150# Flanges
1.5 in x 1 in Electropolished Tri-clamps
2 in x 1.5 in ANSI 150# Flanges
2 in x 1.5 in Electroplished Tri-Clamps
Maximum Specific Gravity up to 1.8
Maximum Working Pressure 100 psi (6.9 bar)
Maximum Temperature 300º F (149º C)
@3450 RPM @2900 RPM
Flow Range* 5 to 142 gpm 1.14 to 26.2 m3/h
Maximum Head 88.2 ft 18.3  m
Power Range** 0.48 to 3.5 hp 0.18 to 1.4 kW
*See Performance tab for individual impeller diameter capability
**Smallest to largest impeller on 1.0 s.g.
Type Stainless Steel Mechanically Sealed Recessed
Configuration Horizontal
Construction Materials 316 Stainless Steel
O-Ring Materials FKM, EPDM, Buna, or PTFE Encapsulated Silicone
Seal Type Bellows Type 21, J103081
Seal Materials Carbon, Ceramic, SiC, FKM, EPDM, Buna, or Kalrez®
*Kalrez® is a registered trademark of DuPont Performance Elastomers

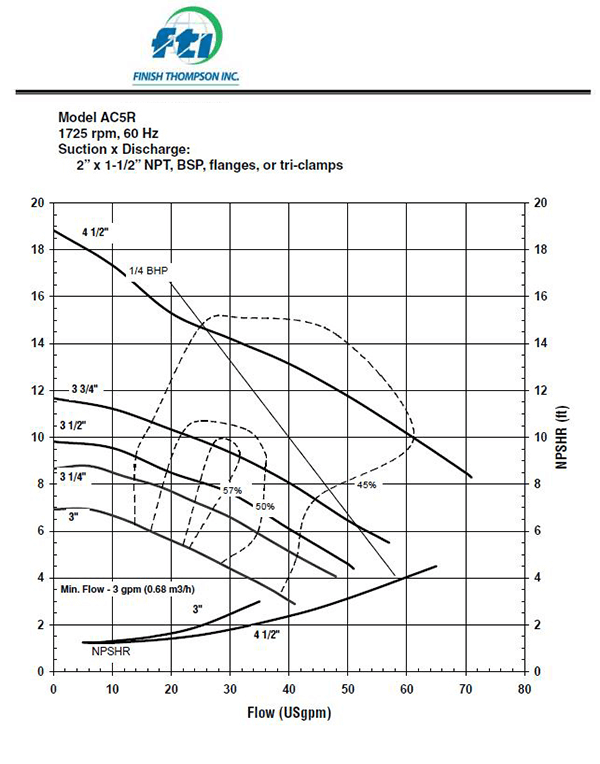

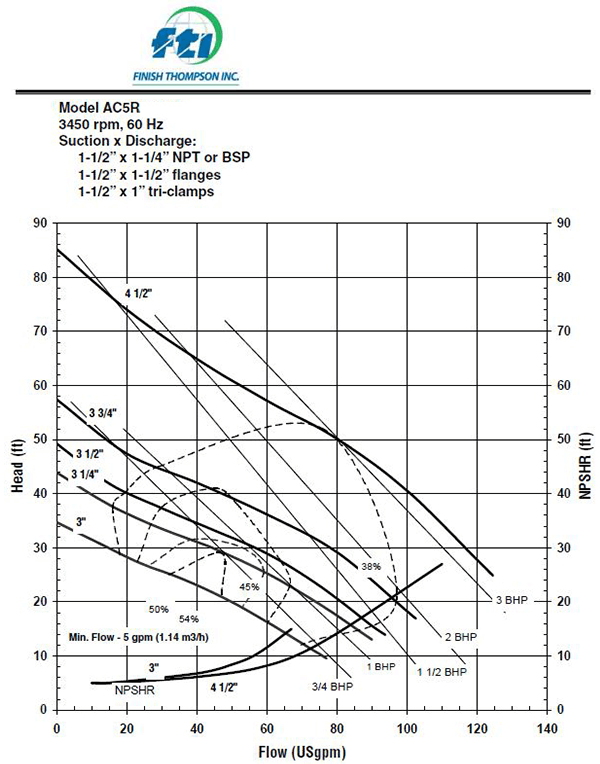

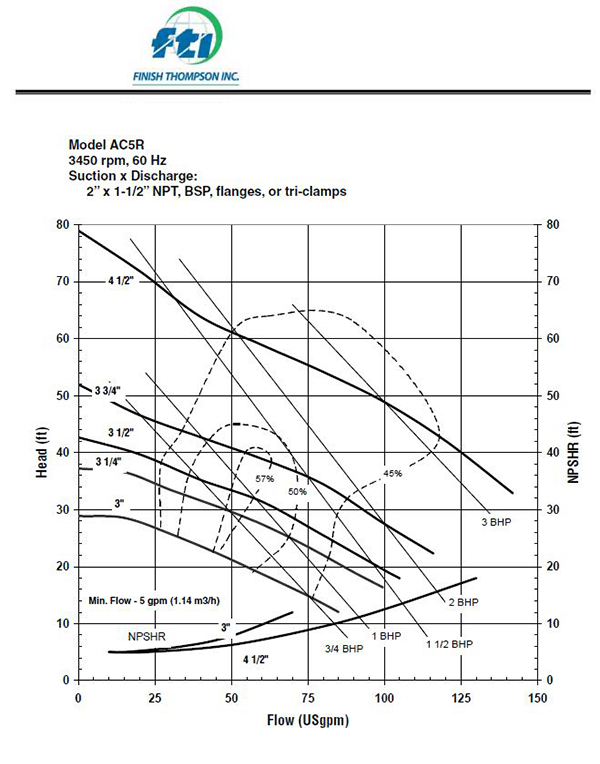

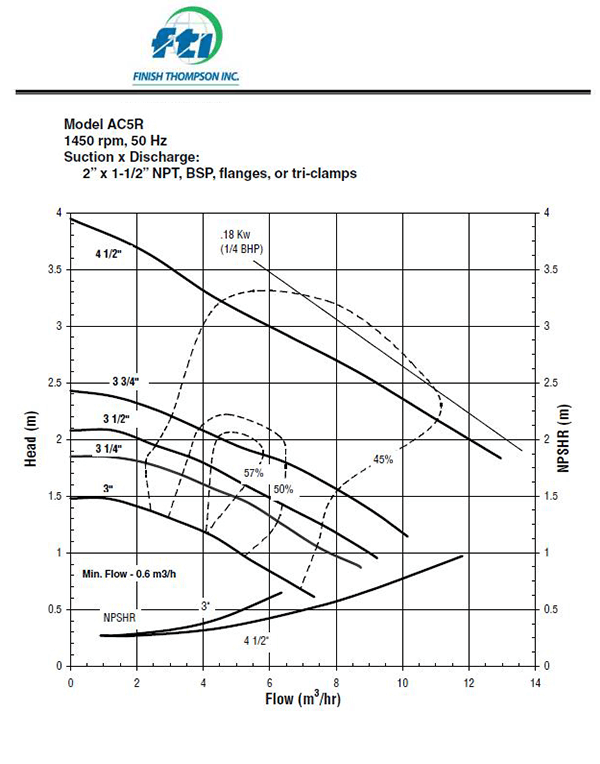

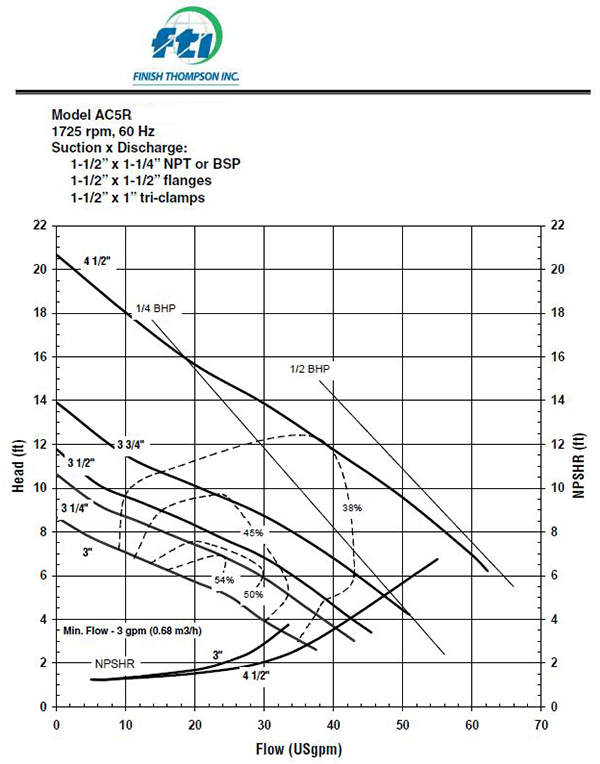

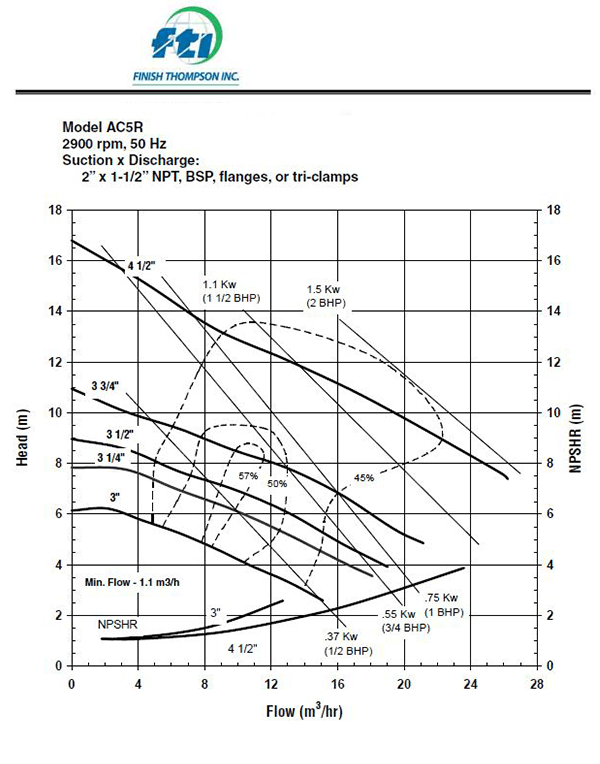

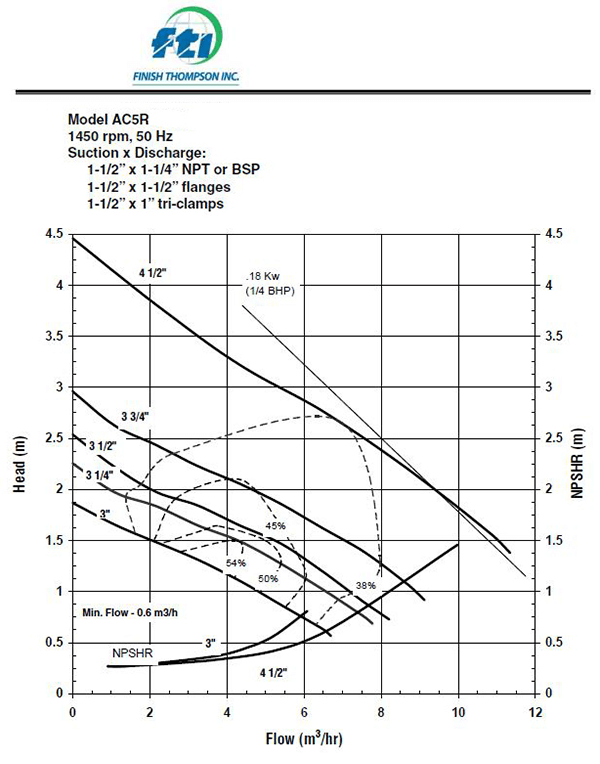

Performance


Exploded View


Parts:

  • 1. Impeller Housing
  • 2. V-Clamp
  • 3. O-Ring
  • 4. Impeller
  • 5. Seal
  • 6. Shaft Adapter w/ Set Screws
  • 7. Backhead
  • 8. Motor Adapter
  • 9. 1/4-20 x 1/4” Cup Point Set Screw
  • 10. Hex Head Cap Screw
  • 11. Lock Washer
  • 12. Slinger Ring
  • 13. Cap Screw Fillister Head (all)
  • 14. #10 Lock Washer (all)
  • 15. Mounting Plate
  • 16. Metric Motor Adapter
  • 17. Flat Washer - 5/16”
