AP Series | AC Model Pumps

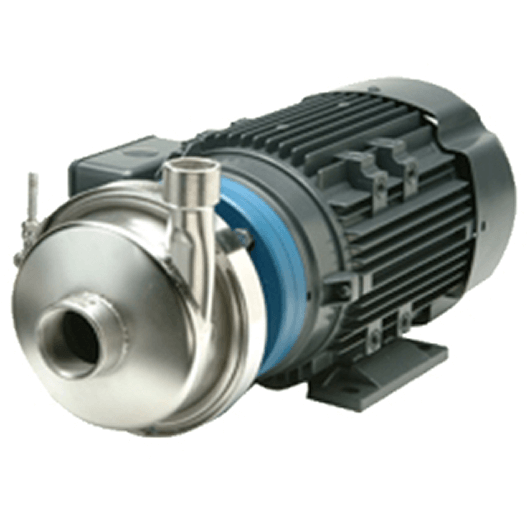

Sealed Pumps - AC5H
Applications
- Chemical processing
- Printed circuit boards
- Pharmaceutical
- Waste water treatment
Specifications
Performance
Exploded View
Downloads
| Port Sizes (Suction x Discharge) & Connection Types |
1/2 x 1/4 NPT threaded connections 1/2 x 1/4 BSP threaded connections 1/2 x 1/4 NPT electropolished threaded connections 1 in x 1 in ANSI #150 Flanges 1.5 in x 0.75 in Electropolished Tri-clamps |
|---|---|
| Maximum Specific Gravity | up to 1.8 |
| Maximum Working Pressure | 100 psi (6.9 bar) |
| Maximum Temperature | 300º F (149º C) |
| @3450 RPM | @2900 RPM | |
|---|---|---|
| Flow Range* | 2 to 16.9 gpm | 0.45 to 3.8 m3/h |
| Maximum Head | 96 ft | 29.2 m |
| Power Range** | 0.41 to 0.57 hp | 0.18 to 0.26kW |
| *See Performance tab for individual impeller diameter capability **Smallest to largest impeller on 1.0 s.g. |
||
| Type | Stainless Steel Mechanically Sealed High Head |
|---|---|
| Configuration | Horizontal |
| Construction Materials | 316 Stainless Steel |
| O-Ring Materials | FKM, EPDM, Buna, or PTFE Encapsulated Silicone |
| Seal Type | Bellows Type 21 |
| Seal Materials | Carbon, Ceramic, SiC, FKM, EPDM, Buna, or Kalrez® |
Parts:
- 1. Impeller Housing
- 2. V-Clamp
- 3. O-Ring
- 4. Impeller
- 5. Seal
- 6. Shaft Adapter w/ Set Screws
- 7. Backhead
- 8. Motor Adapter
- 9. 1/4-20 x 1/4” Cup Point Set Screw
- 10. Hex Head Cap Screw
- 11. Lock Washer
- 12. Slinger Ring
- 13. Cap Screw Fillister Head
- 14. #10 Lock Washer
- 15. Mounting Plate
- 16. Metric Motor Adapter
- 17. Flat Washer - 5/16”
Additional downloads available upon request, please contact sales@finishthompson.com
Specifications
| Port Sizes (Suction x Discharge) & Connection Types |
1/2 x 1/4 NPT threaded connections 1/2 x 1/4 BSP threaded connections 1/2 x 1/4 NPT electropolished threaded connections 1 in x 1 in ANSI #150 Flanges 1.5 in x 0.75 in Electropolished Tri-clamps |
|---|---|
| Maximum Specific Gravity | up to 1.8 |
| Maximum Working Pressure | 100 psi (6.9 bar) |
| Maximum Temperature | 300º F (149º C) |
| @3450 RPM | @2900 RPM | |
|---|---|---|
| Flow Range* | 2 to 16.9 gpm | 0.45 to 3.8 m3/h |
| Maximum Head | 96 ft | 29.2 m |
| Power Range** | 0.41 to 0.57 hp | 0.18 to 0.26kW |
| *See Performance tab for individual impeller diameter capability **Smallest to largest impeller on 1.0 s.g. |
||
| Type | Stainless Steel Mechanically Sealed High Head |
|---|---|
| Configuration | Horizontal |
| Construction Materials | 316 Stainless Steel |
| O-Ring Materials | FKM, EPDM, Buna, or PTFE Encapsulated Silicone |
| Seal Type | Bellows Type 21 |
| Seal Materials | Carbon, Ceramic, SiC, FKM, EPDM, Buna, or Kalrez® |

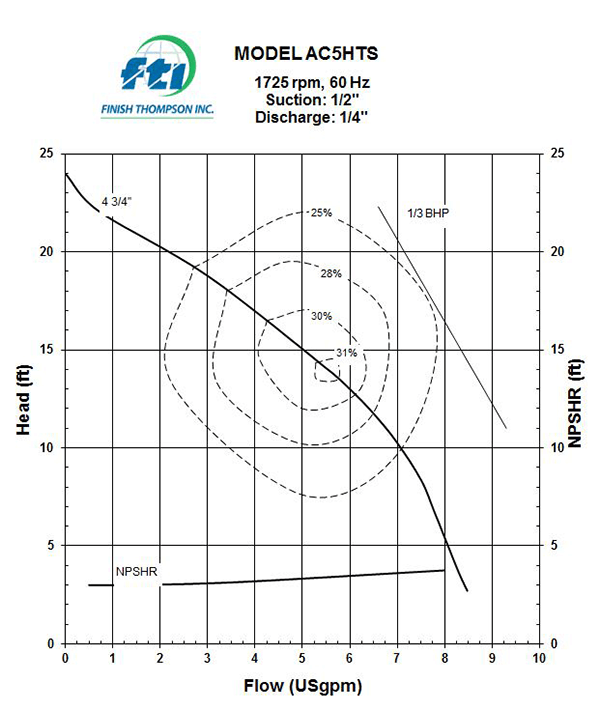

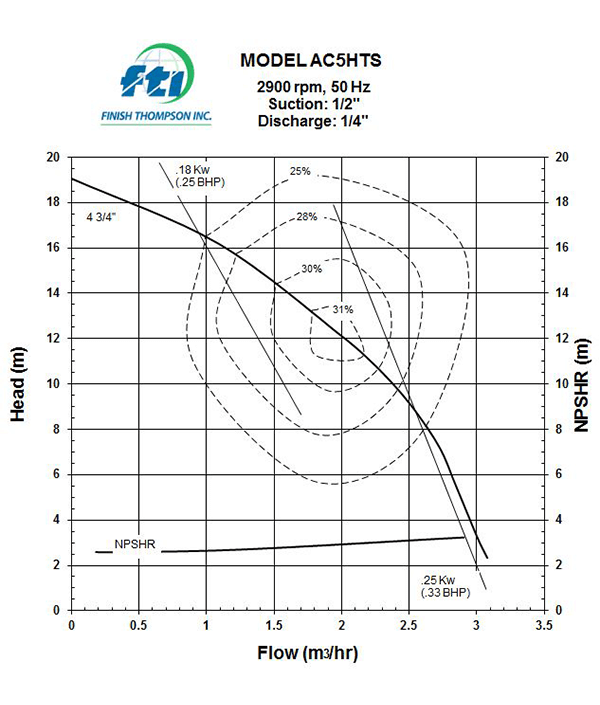

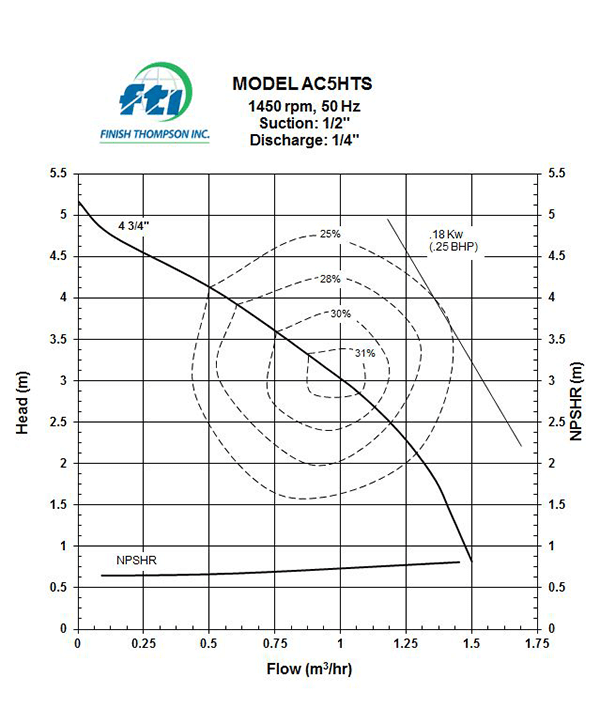

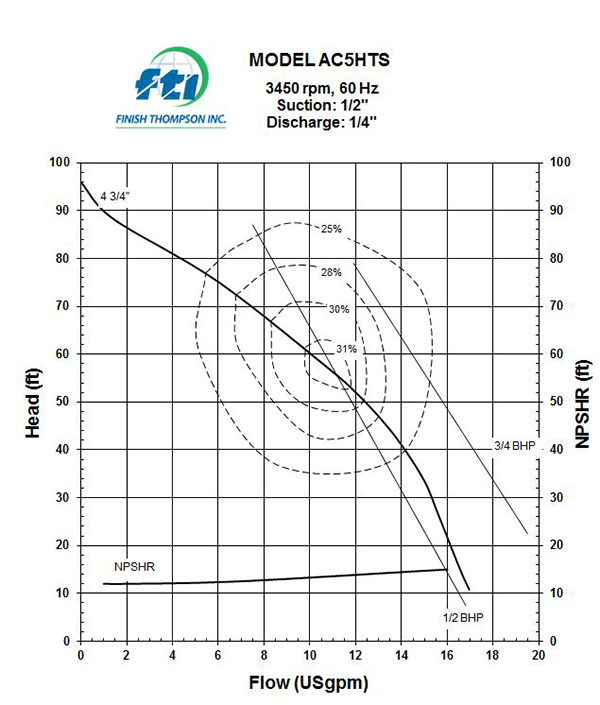

Performance
Exploded View
Parts:
- 1. Impeller Housing
- 2. V-Clamp
- 3. O-Ring
- 4. Impeller
- 5. Seal
- 6. Shaft Adapter w/ Set Screws
- 7. Backhead
- 8. Motor Adapter
- 9. 1/4-20 x 1/4” Cup Point Set Screw
- 10. Hex Head Cap Screw
- 11. Lock Washer
- 12. Slinger Ring
- 13. Cap Screw Fillister Head
- 14. #10 Lock Washer
- 15. Mounting Plate
- 16. Metric Motor Adapter
- 17. Flat Washer - 5/16”
Downloads
Additional downloads available upon request, please contact sales@finishthompson.com
