Drum/Barrel Pumps

Finish Thompson manufactures a range of drum pumps to suit specific application needs, from high-performance pumps with double-suction impellers to provide high-flow and high-head, to pumps built with varying tough-duty materials to handle a wide range of fluids including harsh acids and bases, to pumps designed to handle high viscosity liquids.

Materials of Construction

Drum and barrel pumps feature tubes constructed of various materials to enable you to match the pump construction materials to the fluids in the application. Most outer tubes are available in 316 stainless steel, PVDF, polypropylene (PP), CPVC, and pure polypropylene/ PVDF. Each of these materials offers different capabilities.

It’s important to keep in mind the construction of the rest of the pump as well. Any fluids that the pump transfers will come into contact with more than the outer tube only. Additionally, the pump’s external environment may be an important factor in the exterior materials and overall construction of the pump.

Motor Options

Each drum pump series is compatible with specific motors for optimal functioning. Many come with speed control to allow adjustment for precision flow.

When specifying a drum pump motor, be aware that certain motor types are better suited for some applications than others. Finish Thompson offers splash-proof/open drip proof motors (IP24), enclosed/TEFC motors (IP54/55), explosion-proof motors (IP54/55), air motors, and lithium ion battery motors (IP24).

Pump Series Selection

Specific series of pumps are designed for or have options for different types of applications. Some are designed to transfer large volumes of fluids in short periods of time while others are better suited to transferring small quantities. Some series do not offer options for pumping flammables or combustibles. Others are ideally suited for pumping viscous fluids or offer FDA-compliant options and are suitable for use in the food and beverage industry.

It is also important to consider the appropriate tube length required by the application.

Product Line Overview

BT Series Drum/Barrel Pumps

BT Series Drum/Barrel Pumps

Sealed • High Viscosity/High Head

  • Stainless steel with sealed design
  • Made with PTFE screw-type lifting compressors to handle liquids with higher viscosities.
Product Type Name

EF Series Drum/Barrel Pumps

Economy Drum Pumps

Sealless • Best Value

  • Economical choice for light duty transfer
  • Ideal replacement for hand pumps
Product Type Name

HVDP Series Drum/Barrel Pumps

HVDP Series Drum/Barrel Pumps

Sealed • High Viscosity/High Head

  • Progressive cavity, positive displacement-style pump
Product Type Name

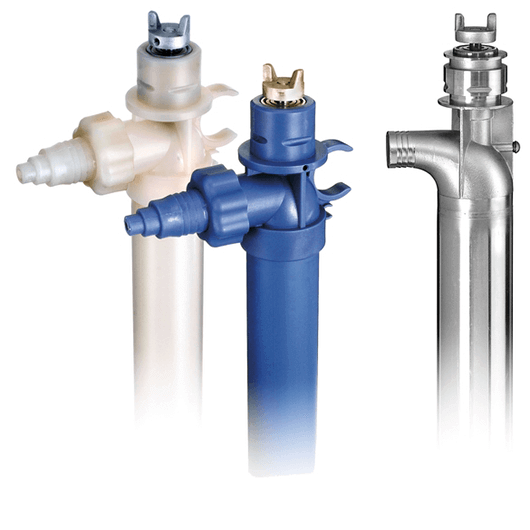

PF Series Drum/Barrel Pumps

PF Series Drum/Barrel Pumps

Sealless • High Performance

  • Unique double suction impeller provides high flow and high head.
Product Type Name

SF Series Drum/Barrel Pumps

SF Series Drum/Barrel Pumps

Sealless • High Performance

  • Dual impeller options provides either high flow or high head
  • 40mm tube diameter for smaller bung openings
Product Type Name

TB Series Drum/Barrel Pumps

TB Series Drum/Barrel Pumps

Sealed • Lightweight Economy Design

  • Lightweight pumps suitable for low to medium viscosity mild corrosives, solvents, and chemicals.
Product Type Name

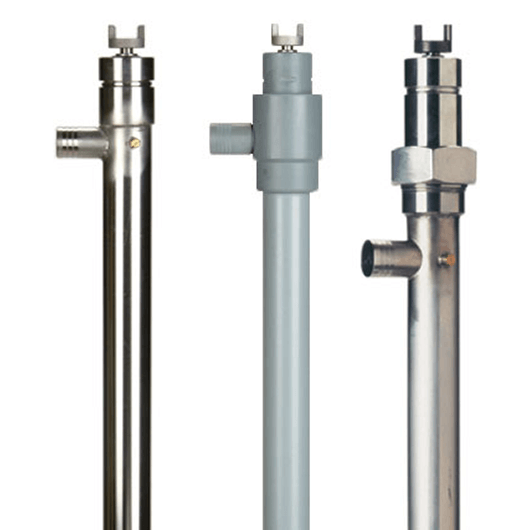

TT Series Drum/Barrel Pumps

TT Series Drum/Barrel Pumps

Sealed • Medium Viscosity/Flow

  • Offer light to medium viscosity fluid handling
Product Type Name

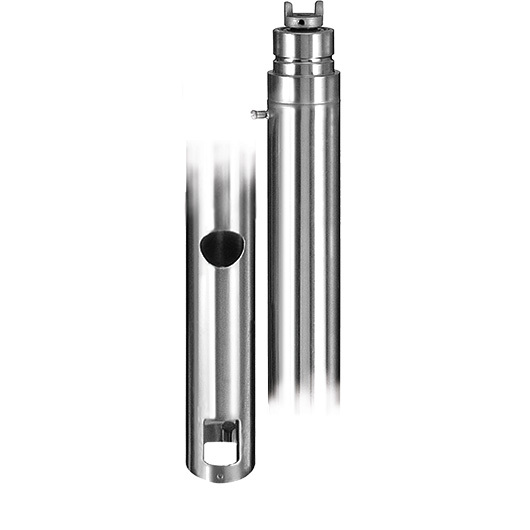

TM Series Drum/Barrel Pump Mixer

TM Series Drum/Barrel Pump Mixer

Sealed • Low/Medium Viscosity

  • A 4-blade, turbine drum mixer ideal for mild corrosives, solvents, or flammables† of light to medium viscosity
  • Fluid is pulled into the top of the mixer tube and is discharged under pressure out of the bottom in a continuous blending cycle
  • Top-to-bottom mixing action allows rapid suspension of settled solids
Product Type Name
