TEFC (Totally Enclosed Fan-Cooled) Motors
FTI totally enclosed fan-cooled (TEFC) motors are IP55 electric motors enclosed in a protective housing that prevents outside air, dust, dirt, and moisture from entering the motor’s internal components. An external fan mounted on the rear of the motor blows air over the housing to dissipate heat and maintain optimal operating temperature. TEFC motors are durable and well-suited for harsh or dirty environments, including industrial settings where exposure to splashes, dust, or non-corrosive contaminants is common.
M15
Certifications: N/A
Requirements: 230-460V/60Hz
Output (kW): 0.75
RPM: 3,450
Max viscosity: 800 cP
M16
Certifications: N/A
Requirements: 230-460V/60Hz
Output (kW): 1.5
RPM: 1,725
Max viscosity: 7,000 cP
Compatible with: BT series drum pumps
M17
Certifications: N/A
Requirements: 230-460V/60Hz
Output (kW): 2.2
RPM: 1,725
Max viscosity: 15,000 cP
Compatible with: BT series drum pumps
M27
Certifications: N/A
Requirements: 115-230V/60Hz
Output (kW): 0.75
RPM: 3,450
Max viscosity: 800 cP
Compatible with: BT series drum pumps
M28
Certifications: N/A
Requirements: 115-230V/50-60Hz
Output (kW): 1.5
RPM: 1,725
Max viscosity: 7,000 cP
Compatible with: BT series drum pumps
M29
Certifications: N/A
Requirements: 115-230V/50-60Hz
Output (kW): 2.5
RPM: 1,725
Max viscosity: 15,000 cP
Compatible with: BT series drum pumps
M39
Certifications: N/A
Requirements: 220-380-440V/50-60Hz
Output (kW): 0.75
RPM: 2,850
Max viscosity: 1,000 cP
Compatible with: BT series drum pumps
M3T
Certifications: QPS
Requirements: 115V/60Hz
Input/output (W): 1,000/680
RPM: 12,000
Max viscosity (cP): 200 (TB), 1,000 (PF), 800/1,200 (SF)
Compatible with: PF series, SF series, and TB series drum pumps
M3TV
Certifications: QPS
Requirements: 115V/60Hz
Input/output (W): 1,000/680
RPM: 0-12,000
Max viscosity (cP): 200 (TB), 1,000 (PF), 1,000/1,200 (SF)
Compatible with: PF series, SF series, and TB series drum pumps
M40
Certifications: N/A
Requirements: 220-380-440V/50-60Hz
Output (kW): 1.5
RPM: 1,425
Max viscosity: 8,500 cP
Compatible with: BT series drum pumps
M5T
Certifications: CE
Requirements: 230V/50-60Hz
Input/output (W): 1,000/680
RPM: 12,000
Max viscosity (cF): 200 (TB), 1,000 (PF), 800/1,200 (SF)
Compatible with: PF series, SF series, and TB series drum pumps
M5TV
Certifications: CE
Requirements: 230V/50-60Hz
Input/output (W): 1,000/680
RPM: 0-12,000
Max viscosity (cF): 200 (TB), 1,000 (PF), 1,000/1,200 (SF)
High flow/high head max viscosity: 1,000 – 1,200 cP
Compatible with: PF series, SF series, and TB series drum pumps

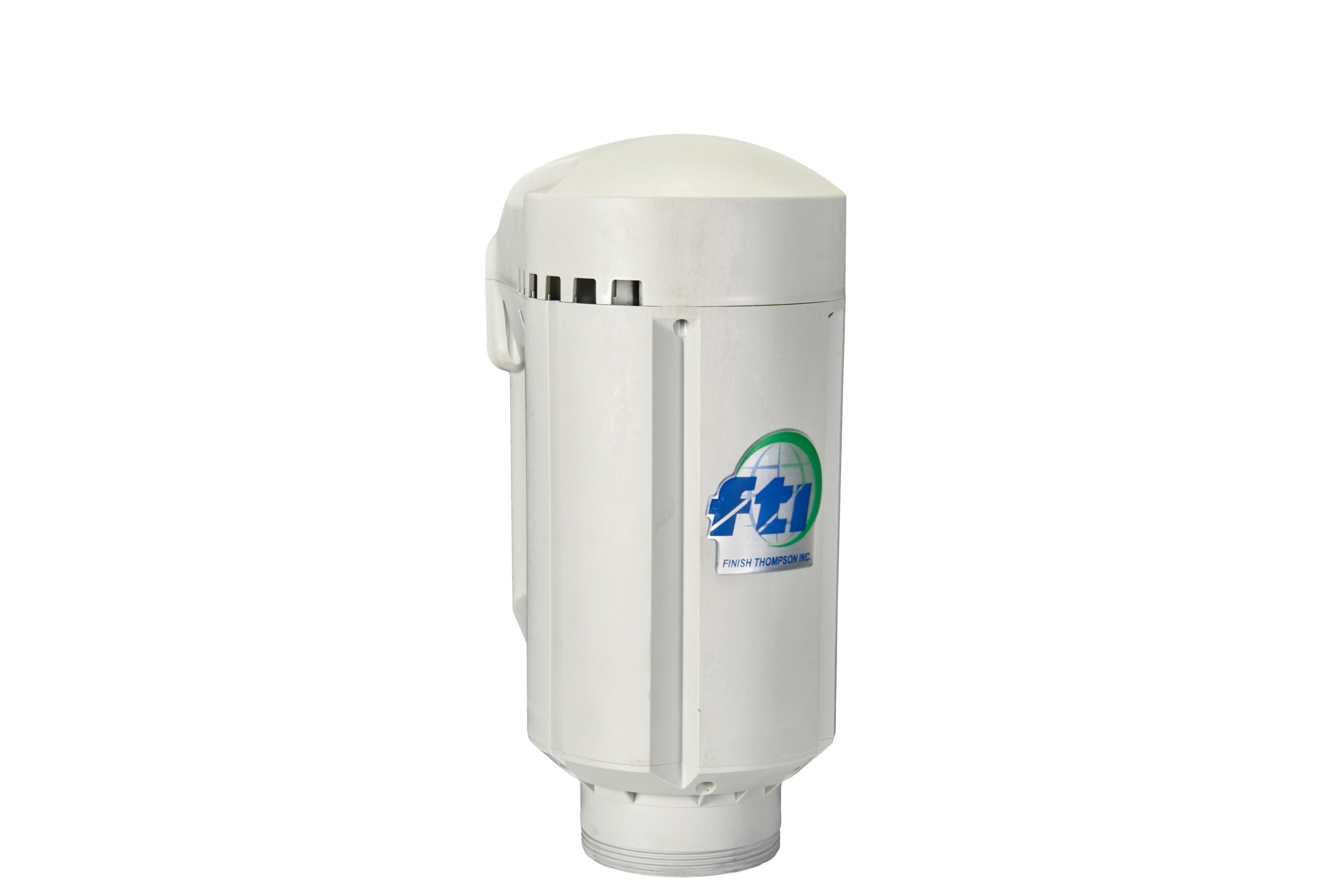

M73
Certifications: QPS
Requirements: 115V/60Hz
Input/output (W): 1,000/680
RPM: 12,000
Max viscosity: 10,000 cP
Compatible with: HVDP series drum pumps
M74
Certifications: CE
Requirements: 230V/50-60Hz
Input/output (W): 1,000/680
RPM: 12,000
Max viscosity: 10,000 cP
Compatible with: HVDP series drum pumps
M75
Certifications: QPS
Requirements: 115V/60Hz
Input/output (W): 1,000/680
RPM: 0-12,000
Max viscosity: 20,000 cP
Compatible with: HVDP series drum pumps
M76
Certifications: CE
Requirements: 230V/50-60Hz
Input/output (W): 1,000/680
RPM: 0-12,000
Max viscosity: 20,000 cP
Compatible with: HVDP series drum pumps
M7TV
Certifications: QPS
Requirements: 115V/60Hz
Input/output (W): 450/250
RPM: 0-6,000
Max viscosity (cP): 50 (TT), 100 (TM)
Compatible with: TT series drum pumps and TM series drum mixer
M8TV
Certifications: CE
Requirements: 230V/50-60Hz
Input/output (W): 450/250
RPM: 0-6,000
Max viscosity (cP): 50 (TT), 100 (TM)
Compatible with: TT series drum pumps and TM series drum mixer
