Air Motors
An air motor is a non-electric device powered by compressed air instead of electricity. It's commonly used in hazardous or explosive environments where sparking from electric motors could be dangerous. Air motors are lightweight, easy to control, and provide variable speed and torque by adjusting the air pressure. They are ideal for intermittent or continuous duty and can safely handle flammable, volatile, or corrosive liquids when paired with compatible pump tubes.
M18
M18 Motor
Certifications: CE
Requirements: 100psi@14-70 cfm
Output (W): 750
RPM: 300-3,000
Max viscosity: 800 cP
Compatible with: BT series drum pumps
M19
M19 Motor
Certifications: CE
Requirements: 100psi@80-120 cfm
Output (W): 1,500
RPM: 300-3,000
Max viscosity: 7,000 cP
Compatible with: BT series drum pumps
M20
M20 Motor
Certifications: CE
Requirements: 100psi@120-170 cfm
Output (W): 2,200
RPM: 300-2,500
Max viscosity: 15,000 cP
Compatible with: BT series drum pumps

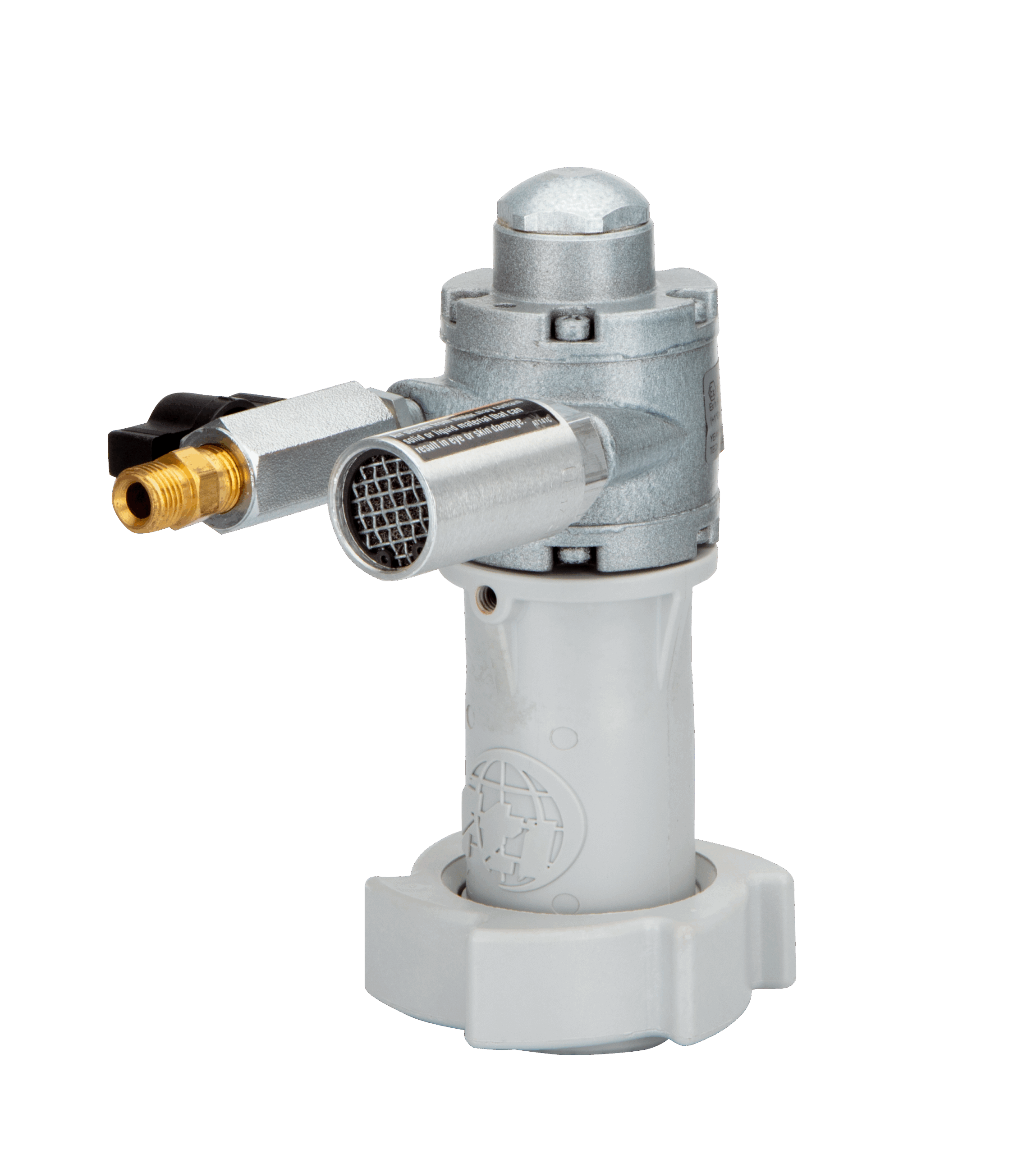

M6
M6 Motor
Certifications: CE; ATEX option available
Requirements: 80-100psi@15-32 cfm
Input/output (W): 400
RPM: 300-9,000
Max viscosity: 330-1,500 cP
Compatible with: PF series, SF series, TT series, and TB series drum pumps and TM series drum mixer
M65
M65 Motor
Certifications: CE
Requirements: 100psi@25 cfm
Input/output (W): 560
RPM: 300-3,000
Max viscosity: 15,000 cP
Compatible with: HVDP series drum pumps
M66
M66 Motor
Certifications: CE
Requirements: 100psi@25 cfm
Input/output (W): 1,000
RPM: 300-3,000
Max viscosity: 100,000 cP
Compatible with: HVDP series drum pumps

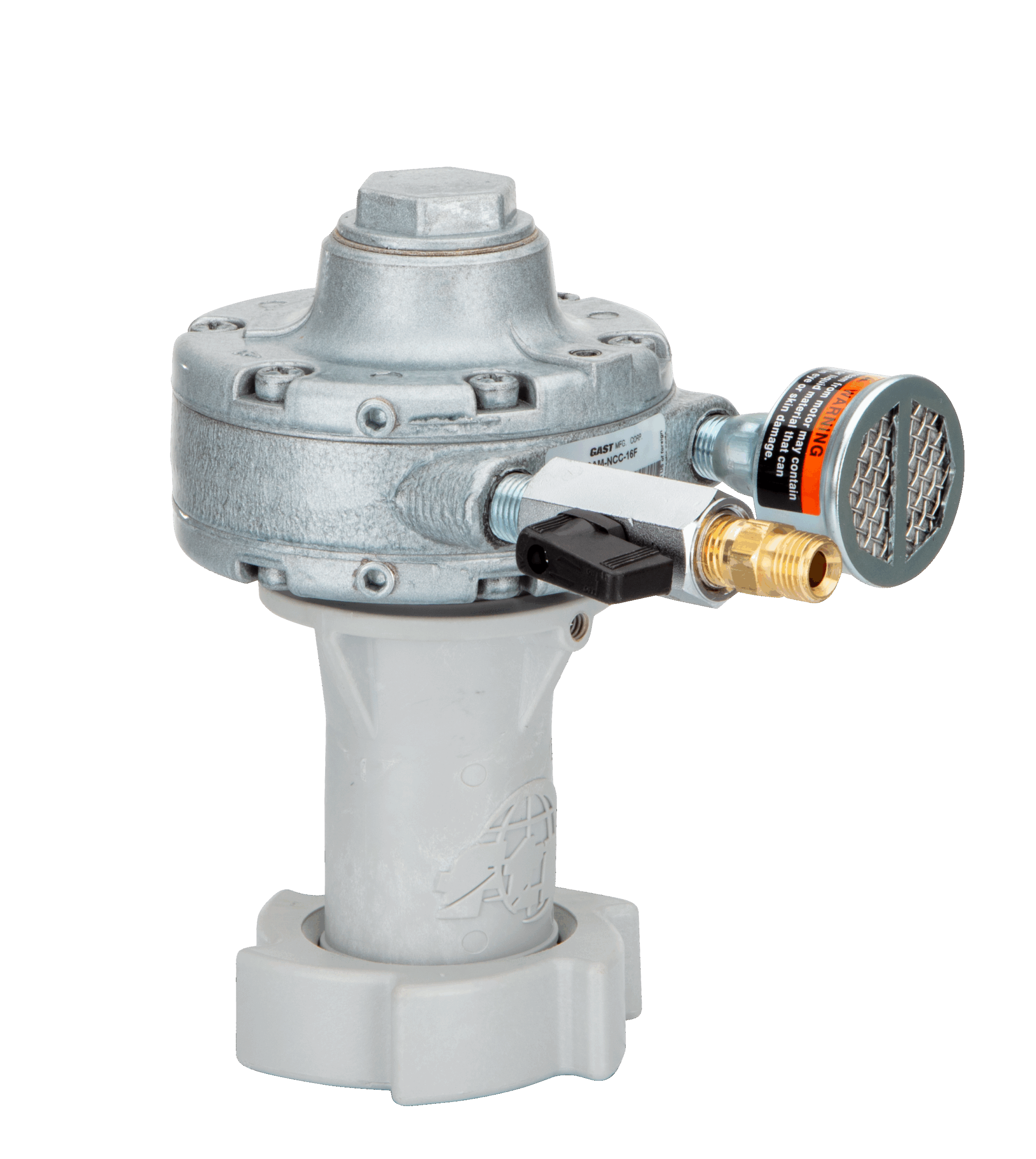

M6X
Certifications: CE; ATEX option available
Requirements: 80-100psi@15-32 cfm
Input/output (W): 600
RPM: 300-6,000
Max viscosity: 330-2,000 cP
Compatible with: PF series, TT series, and TB series drum pumps and TM series drum mixer
S4
S4 Motor
Certifications: CE; ATEX option available
Requirements: 40psi @27 cfm
Input/output (W): -/400
RPM: 300-11,000
Max viscosity: 300 cP
Compatible with: EF series drum pumps
